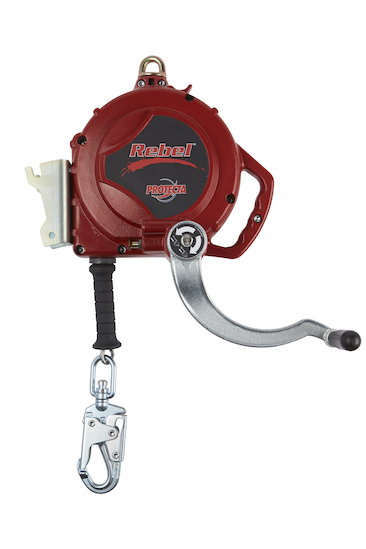

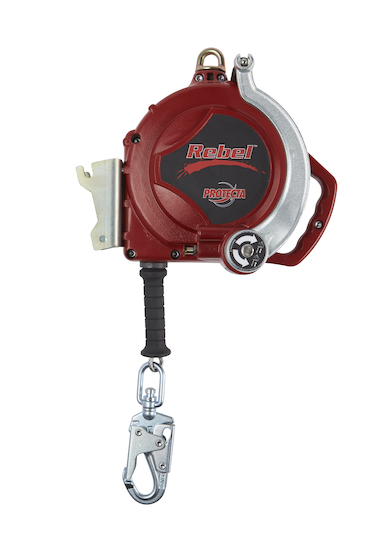

Rebel™ Self Retracting Lifeline - Retrieval with Bracket

50 ft. (15.2m) of 3/16″ (5mm) galvanized steel wire rope with 3-way emergency retrieval winch, mounting bracket, swiveling snap hook, aluminum housing and anchorage carabiner.

  • 3-way emergency retrieval system
  • Integrated quick-connect mounting bracket
  • Stowabe retrieval handle
  • Rugged aluminum housing
  • Built-in carrying handle
  • 50 ft. (15.2m) 3/16″ (5mm) galvanized steel cable lifeline
  • Swiveling self-locking snap hook with impact indicator
  • Speed sensing all metal brake system
  • Internal energy absorption system
  • Reserve lifeline system
  • Side lifeline exit with ergonomic handle
  • High strength, corrosion resistant components
  • Swiveling anchorage point
  • Self-locking anchorage carabiner

SKU: 3591010 Category:
Brands:
Brands

Description

  • 3-way emergency retrieval system

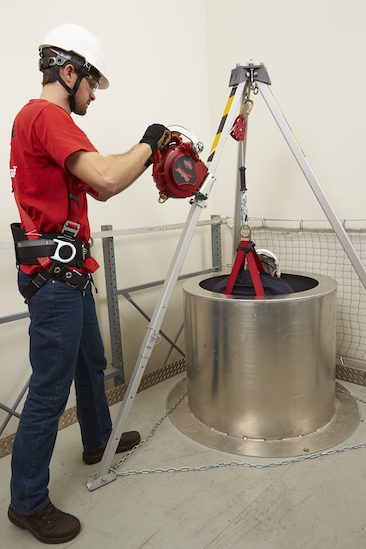

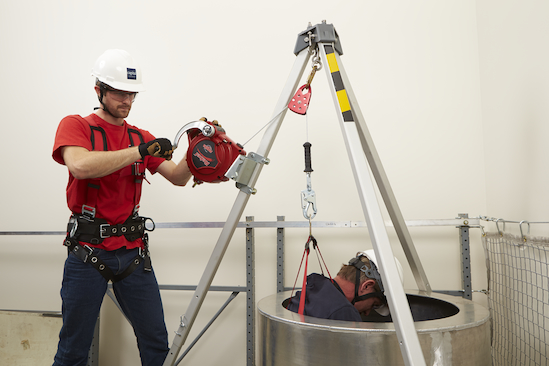

    The built-in winch is ideal for use in confined spaces and allows the load to be raised or lowered during emergencies.

  • Integrated quick-connect mounting bracket

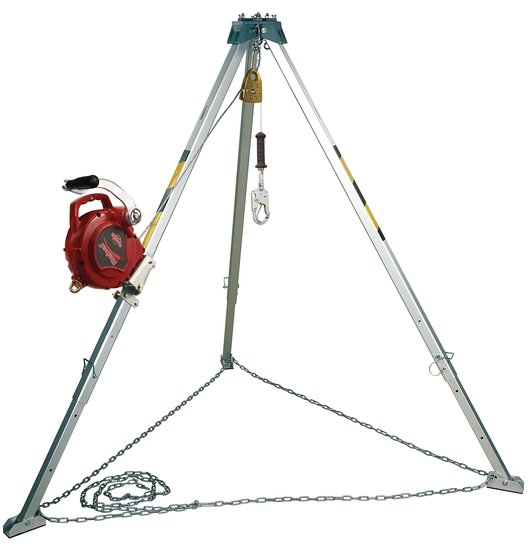

    Allows device to be quickly and easily attached to a support structure such as a tripod with mating bracket base.

  • Stowabe retrieval handle

    The integrated winch handle folds up to stay out of the workers way when not in use for added safety.

  • Rugged aluminum housing

    Will withstand rough use, and its compact design incorporates a smooth case with rounded corners for added comfort and ease-of-use increasing worker productivity.

  • Built-in carrying handle

    Integrated handle makes transport, set-up, use and storage quick and easy.

  • 50 ft. (15.2m) 3/16″ (5mm) galvanized steel cable lifeline

    Abrasion resistant and extremely durable lifeline provides added field longevity, the retractable design provides freedom of movement, keeps the lifeline out of the worker’s way and reduces dragging, snagging and trip falls.

  • Swiveling self-locking snap hook with impact indicator

    Automatically locks and closes for added safety, swivels to limit lifeline twisting for ease of use and provides visual indication of fall arrest.

  • Speed sensing all metal brake system

    Stops a falling worker within inches, and provides smooth consistent operation allowing the user to maintain normal work pace and not be interrupted with constant lock ups.

  • Internal energy absorption system

    Specialized internal absorption system maintains safe fall arrest forces for users and tools up to 420 lbs. (190 kg).

  • Reserve lifeline system

    Maintains a reserve for shock absorption when the entire lifeline is extended for added safety.

  • Side lifeline exit with ergonomic handle

    Enables smooth operation and reduced cable wear, and the handle provides added comfort and ease of use when making connections.

  • High strength, corrosion resistant components

    Stainless steel and zinc plated steel hardware provides added corrosion resistance and extends the life of the device.

  • Swiveling anchorage point

    Stays in line with load for added security and allows use of a variety of standard carabiners.

  • Self-locking anchorage carabiner

    Self closing and self locking carabiner keeps the SRL securely attached to the anchorage device.

Specifications:

Capacity 310 lbs. (141 kg)
Brand PROTECTA®
Sub Brand Rebel™
Size 50 ft. (15.2 m)
iSafe Equipped No
Lifeline Length 50 ft. (15.2 m)
Lifeline Hook Zinc Plated Steel
Anchorage Hook Zinc Plated Steel
Housing Aluminum
Lifeline 3/16″ (5mm) dia. 7×19 Galvanized Aircraft Wire Rope
Model 3591010
Other Standards ANSI Z359.14, OSHA 1910.66, OSHA 1926.502, ANSI A10.32, Capital Safety Gen. Mfg. Req.
Physical Dimensions 23.80×11.10×7.00 (in)
Physical Weight 28.00 lbs (12.7kg)
Product Styles Single Lifeline
Product Types 3-Way Emergency Retrieval
Housing Type Metal
Lifeline Type Galvanized Cable
Mounting Type Overhead Anchor Point
Weight Group Over 10 lbs. (4.5 kg)
Standards CSA Z259.2.2 Type 3, Capital Safety Gen. Mfg. Req.
