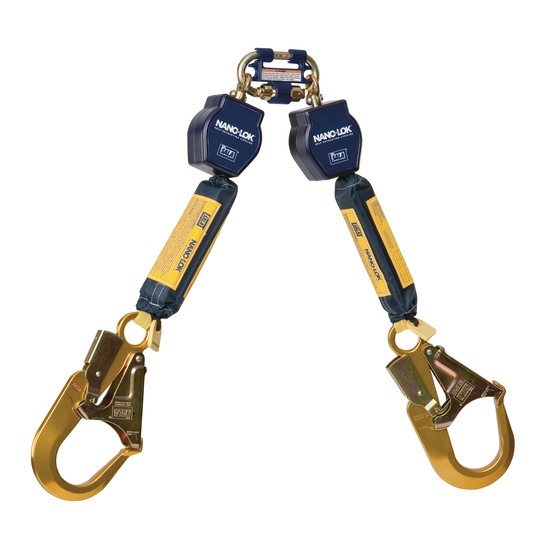

Nano-Lok™ Twin-Leg Quick Connect Self Retracting Lifeline - Web

6 ft. (1.8m) twin-leg lifelines with 3/4″ (19mm) Dyneema® fiber and polyester web and aluminum rebar hooks, quick connector for harness mounting.

  • Twin-leg 100% tie-off design

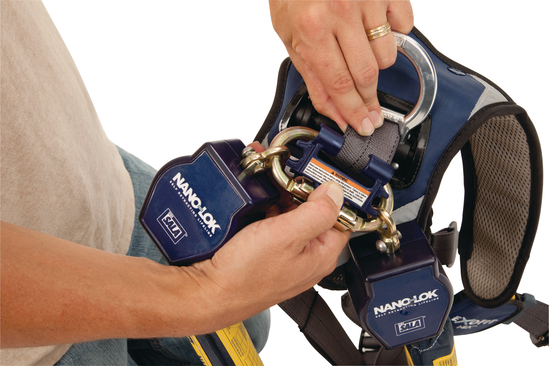

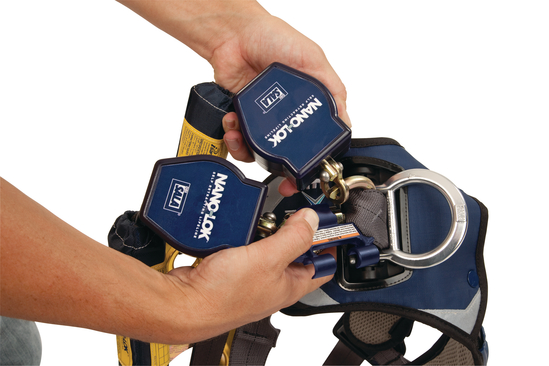

  • Built-in connector for twin-leg SRL direct attachment to harness
  • 6 ft. (1.8m) twin-leg lifelines with 3/4″ (19mm) Dyneema® fiber and polyester web
  • Aluminum self-locking rebar hook on each lifeline
  • Extremely compact, lightweight design
  • Tough and impact resistant thermoplastic housing
  • Swiveling anchorage loops
  • Quick activating speed sensing brake systems
  • High capacity external energy absorbers and impact indicators
  • i-Safe™ equipped
  • Wide variety of configurations available

Description

Nano-Lok™ is ergonomically designed for ease-of-use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement.

Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are more than 30 models to choose from to suit almost any application. Nano-Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

Specifications:

Capacity 420 lbs. (190 kg)
Brand DBI-SALA®
Sub Brand Nano-Lok™
Size 6 ft. (1.8 m)
Velocity Ship Yes
iSafe Equipped Yes
Lifeline Length 6 ft. (1.8 m)
Housing Nylon Thermoplastic
Lifeline Hook Aluminum
Lifeline 3/4″ (19mm) wide Dynema polyester web
Model 3101283
Other Standards ANSI Z359.14, OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI A10.32
Physical Dimensions 22.40×3.50×2.00 (in)
Physical Weight 5.60 lbs (2.5kg)
Product Styles Twin Lifelines (100% tie-off)
Product Types Harness Mounted
Housing Type Thermoplastic
Lifeline Type Web
Mounting Type Direct to Harness Back
Weight Group Less than 5 lbs. (2.3 kg)
Standards CSA Z259.2.2 Type 1, Capital Safety Gen. Mfg. Req.
