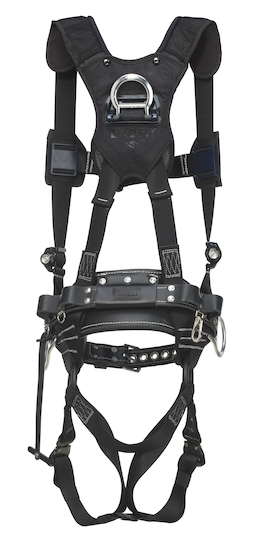

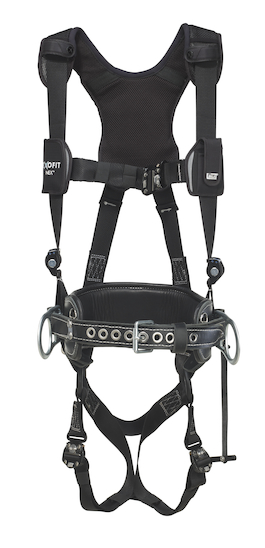

ExoFit NEX™ Lineman Arc Flash Harness with 2D Belt

PVC coated steel back D-ring, locking quick connect buckle leg straps, Nomex®/Kevlar® fiber webbing and comfort padding (size X-Large) with 100% top grain leather 2D lineman belt

This product is currently out of stock and unavailable.



ExoFit NEX™ harnesses are the most advanced harnesses in the industry. They’re the culmination of our experience with ExoFit™ and ExoFit™ XP, ongoing research and the incorporation of new materials and innovative features. True to our NEX mission, we manufacture these harnesses using materials that won’t add unnecessary weight for ultimate comfort. When speed and efficiency are project requirements, ExoFit NEX™ will provide the freedom and confidence to function at your maximum potential. Finally, ExoFit NEX™ harnesses are designed using materials that last. Get into the best, the ultimate comfort, function and durability harness, ExoFit NEX™.


  • Arc flash rated
  • Nomex®/Kevlar® material provides shoulder comfort padding
  • Duo-Lok™ quick connect chest and leg straps
  • Leather insulators
  • Nomex®/Kevlar® fiber webbing
  • Built-in lanyard keepers
  • Revolver™ vertical torso adjusters
  • Impact Indicator
  • Built-in reflective materials
  • Protected labels, equipped with i-Safe™

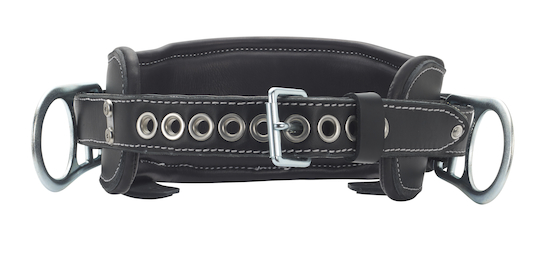

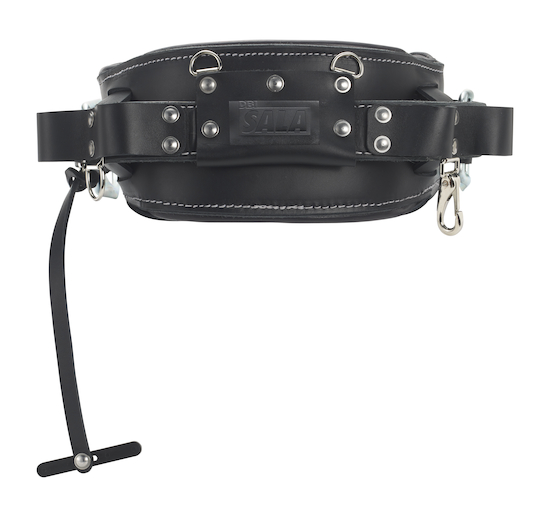

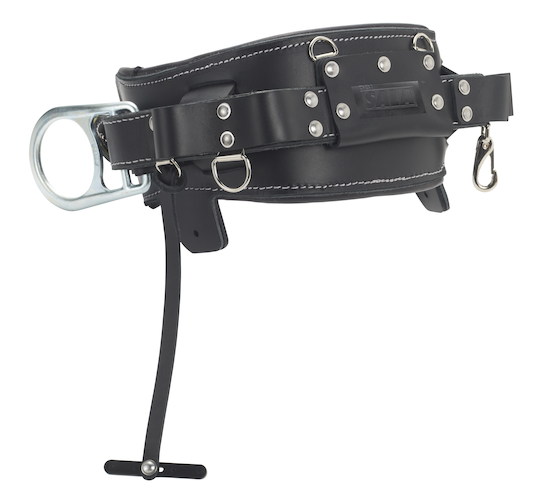

  • Tongue buckle style lineman body belt (size D25)
  • 2 large S-shaped full-floating D-rings at hips
  • Belt made with 100% top grain leather from Red Wing, MN
  • Built-in tool snaps, rings and tape thong
  • Available in other harness sizes and belt sizes D18 through D30
420 lbs. (190 kg)
Sub Brand ExoFit NEX™
Size Large
D-Ring Locations Back Side
Body Belt Yes
Leg Strap Buckle Type Duo-Lok™ Quick Connect
Padding Location Back, Shoulder, Hip
Velocity Ship No
iSafe Equipped Yes
Label Vinyl
Web Keeper Nylon
Thread/Stitching Kevlar®
Padding Nomex®/Kevlar®, EVA Foam
Hip Pad 10 oz and 3 oz Top Grain Leather
Leg Buckle Zinc Plated Steel, E-Coat, Aluminum, Stainless Steel
Chest Buckle Zinc Plated Steel, E-Coat, Aluminum, Stainless Steel
Torso Buckle Zinc Plated Steel, E-Coat, Aluminum, Stainless Steel
Web Nomex®/Kevlar®
D-Ring PVC Coated Steel, Polyethylene
Model 1113688C
Other Standards OSHA 1910.66, OSHA 1926.502, ANSI A10.32, ANSI Z359.1, ANSI Z359.4
Physical Weight 8.50 lbs (3.9kg)
Product Styles Vest Style Construction Arc Flash Vest-Style Lineman
Product Types Multi-Purpose Work Positioning
Standards CSA Z259.10, ASTM F887, Capital Safety Gen. Mfg. Req.


Additional information


Extra Large, Large, Medium, Small
