Modular shackles for use with the DMM Focus and Nexus.
Description

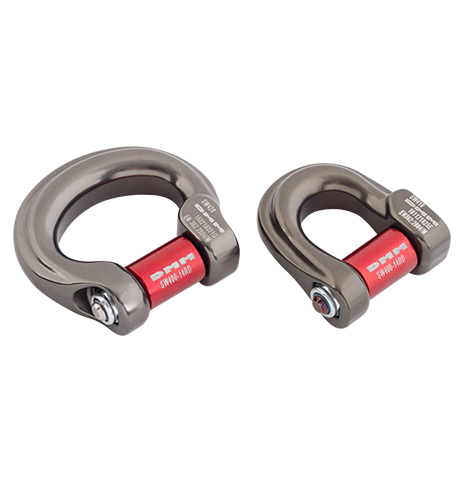

Modular shackles for use with the DMM Focus and Nexus. The D-shape provides the greatest stability when using a single connection, while the bowshape allows increased connection options due to its ability to withstand cross loading.
| Variant | Strength | WLL | Dimensions | Weight | Cat no |
|---|---|---|---|---|---|

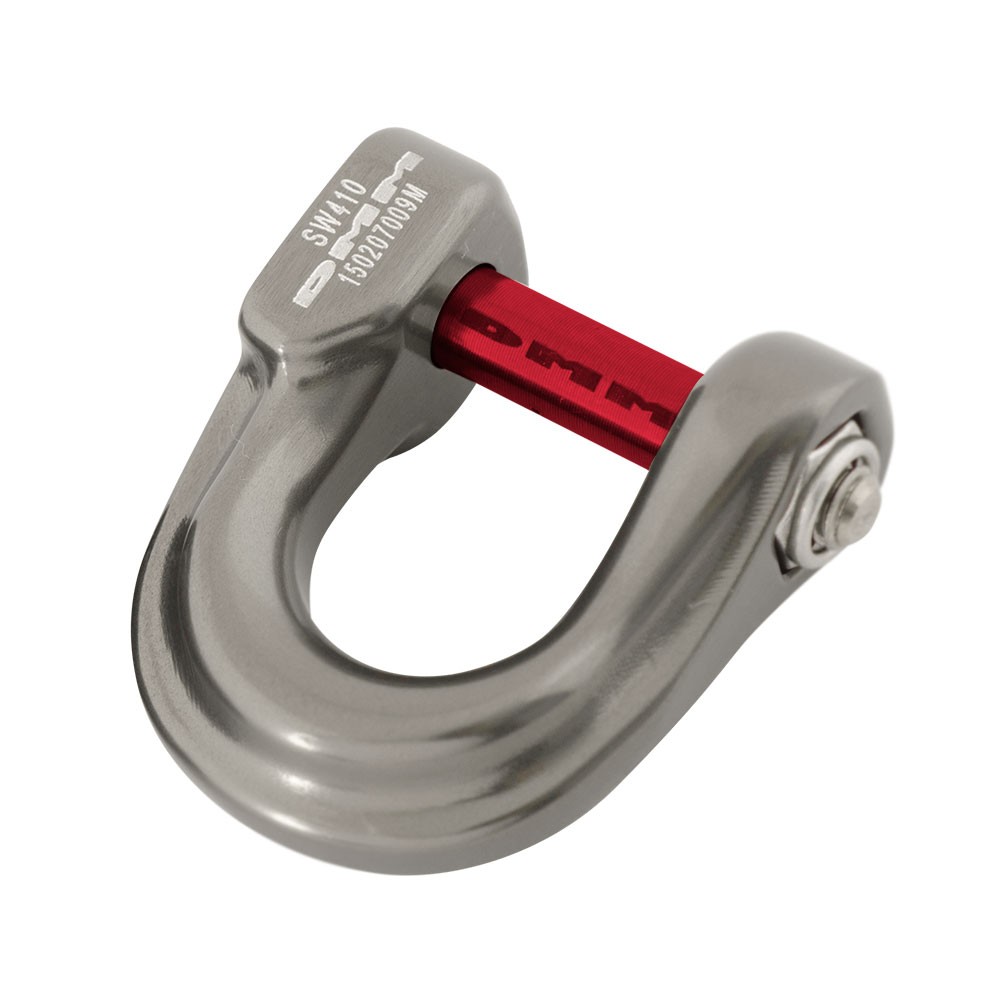

| Compact Shackles S – D Shape | 26kN | 3kN | 34 x 39 x 15mm | 25g | SW410 |

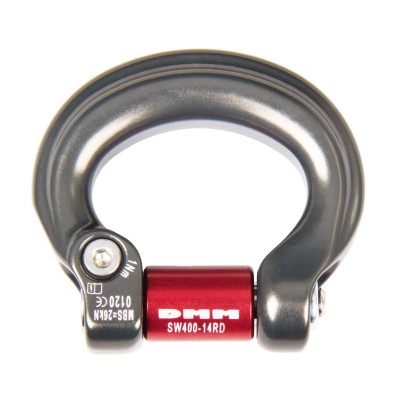

| Compact Shackle L – Bow Shape | 26kN | 3kN | 48 x 44 x 16mm | 33g | SW420 |
Features
- Textile-friendly
- Hot forged aluminium
- Shackle uses 4mm and 2mm Allen keys to ensure secure locking
Additional information
| Size | Large, Small |
|---|
