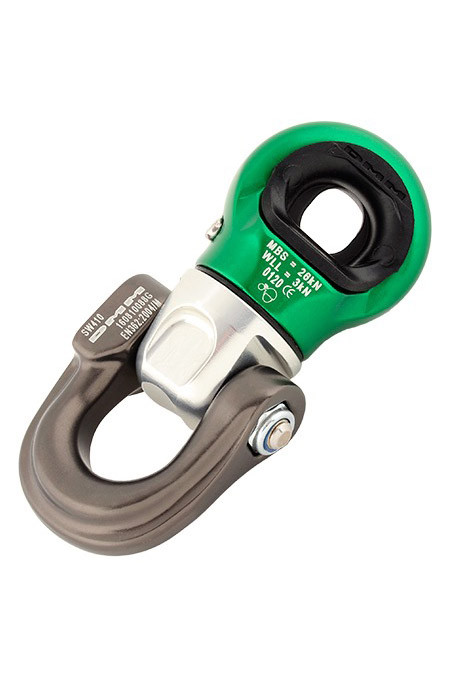

The Focus is a directly connectable swivel that features both swivel and shackle attachments to give you increased connection options.
Description
The Focus is a directly connectable swivel that features both swivel and shackle attachments to give you increased connection options.

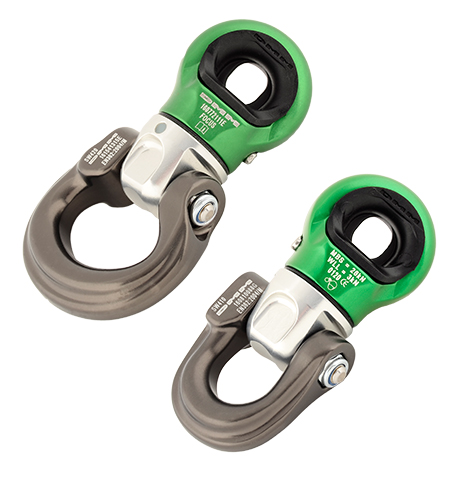

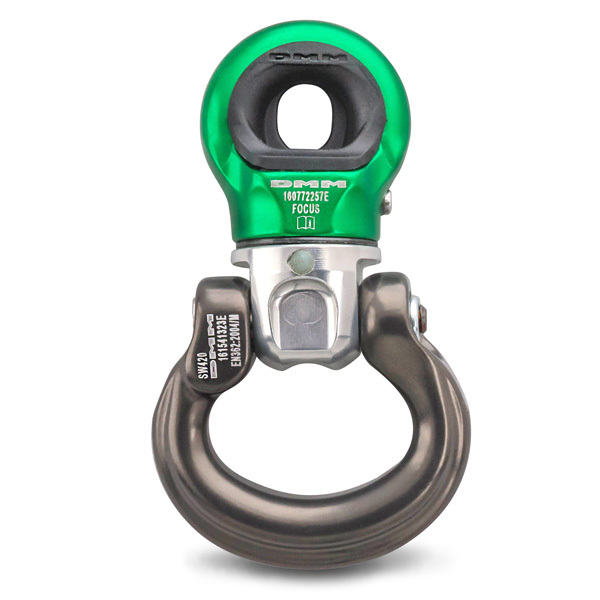

Available with small or large shackles. The small D-shaped shackle of the Focus S allows for accurate configuration of connectors, while the bow-shaped design of the large shackle on the Focus L eliminates cross loading issues and allows multiple attachment points, ideal for complex rigging setups.
For further information see the Compact Swivel Product Information Sheet
| Variant | Strength | WLL | Dimensions | Weight | Cat no |
|---|---|---|---|---|---|
| Focus S | 26kN | 3kN | 76 x 36 x 21mm | 63g | SW440 |
| Focus L | 26kN | 3kN | 82 x 48 x 21mm | 70g | SW450 |
Features
- Textile-friendly
- CNC’d from aluminium
- User maintainable grease port for bearing longevity
- Double locking high tensile stainless steel axles for durability
- Roller thrust bearings for smooth efficiency
- Shackle uses 4mm and 2mm Allen keys to ensure secure locking
Additional information
| Size | Large, Small |
|---|
