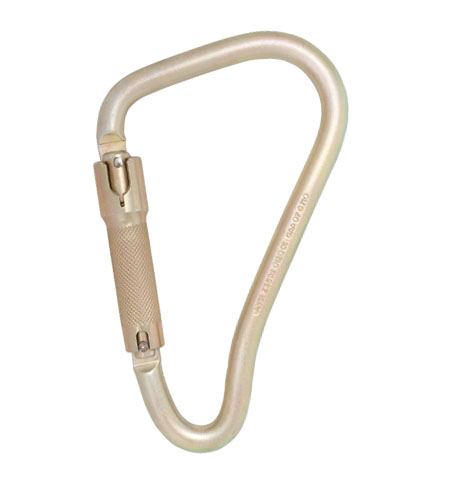

Large volume and ergonomic in use, our offset Scaffold hook excels in most scaffolding situations.
Description
Large volume and ergonomic in use, our offset Scaffold hook excels in most scaffolding situations.
The offset shape keeps the loading closer to the spine giving higher safety reserves.
The ANSI compliant Kwiklock mechanism increases the push in strength of the gate/nose dramatically.
- Conforms to EN362:2004/T, CAN/CSA Z259.12 (2011) and ANSI Z359.12 (2009)
- Very large overall dimensions provide maximum internal dimensions
- Cold forged and fully heat treated carbon steel for high strength and durability
- Zinc plated to EN ISO 2081:2008 Fe/Zn 5c standard for corrosion protection
- Recommended for connecting to large anchor sections such as scaffolding
- Individually marked for traceability
| Variant | Strength (Gate Closed) | Gate Opening | Weight | Cat no |
|---|---|---|---|---|
| Offset Scaff. Hook KL ANSI | 45kN | 50mm | 764g | C714ANSI |
