The lightweight OK carabiner is made of aluminum. It has an oval shape that allows optimal loading of devices with a wide section, such as pulleys or rope clamps. Its fluid interior design and Keylock system facilitate handling. It is available in two locking systems (automatic TRIACT-LOCK system or manual SCREW-LOCK system), or without a locking system.
Description
Description
- Aluminum carabiner is lightweight to reduce equipment weight carried by the user

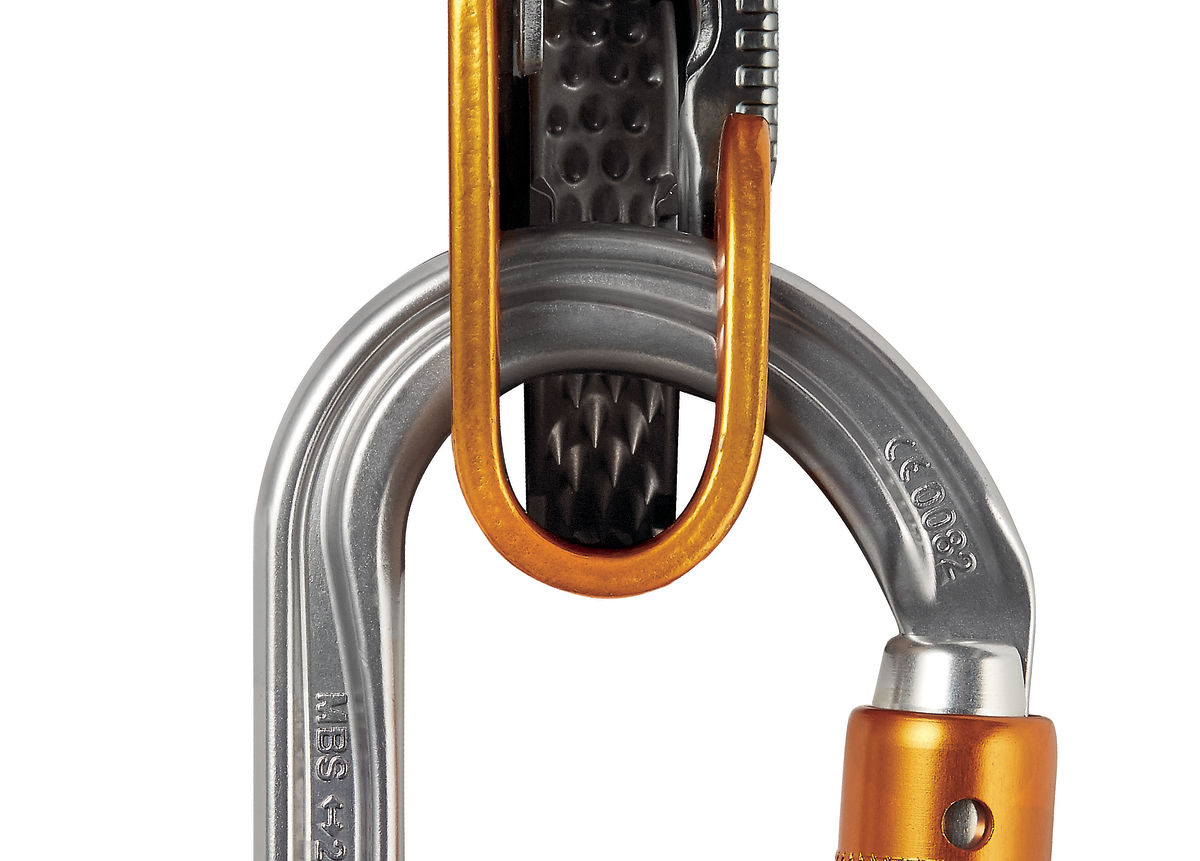

- Symmetrical oval shape allows optimal loading of devices with a wide cross-section, such as pulleys, or rope clamps
- Easier handling:

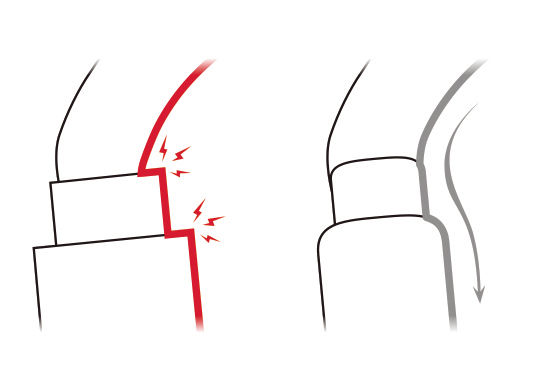

– fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

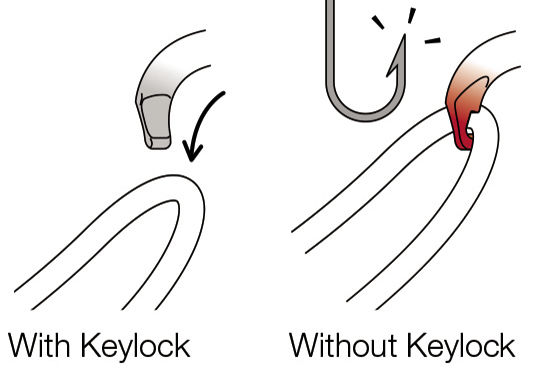

– Keylock system to avoid any involuntary snagging of the carabiner - H cross-section:
– ensures an optimal strength/weight ratio
– protects markings from abrasion - Available without locking system, for easy clipping
- Two locking systems available:

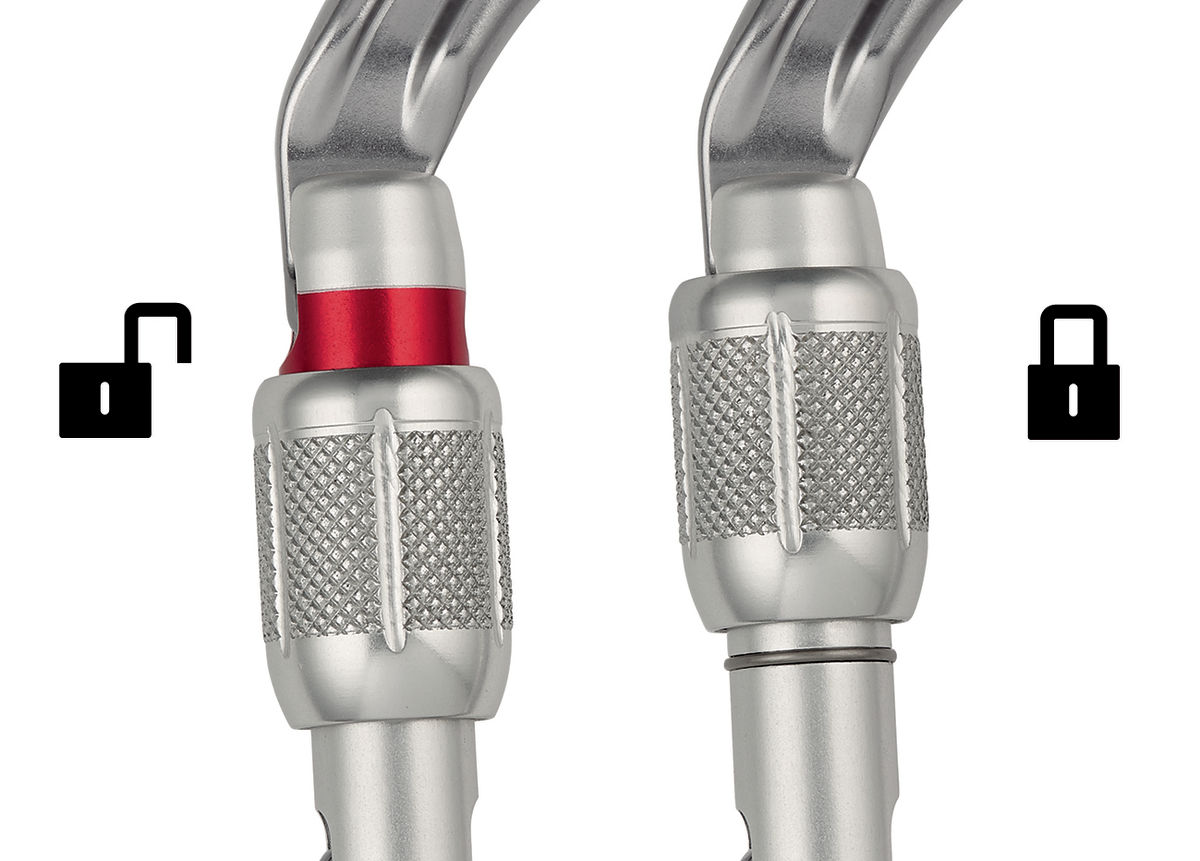

– SCREW-LOCK: manual screw-lock with red band provides a visual warning when the carabiner is unlocked

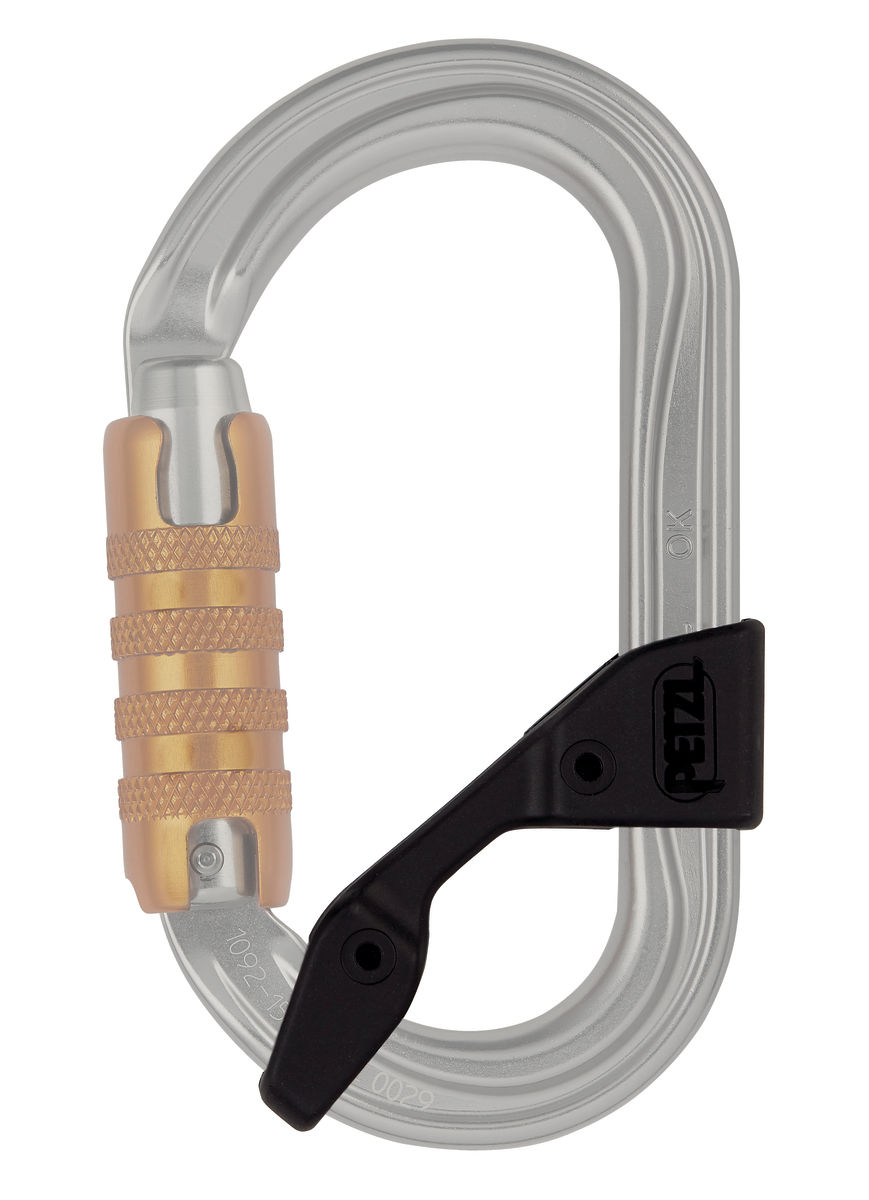

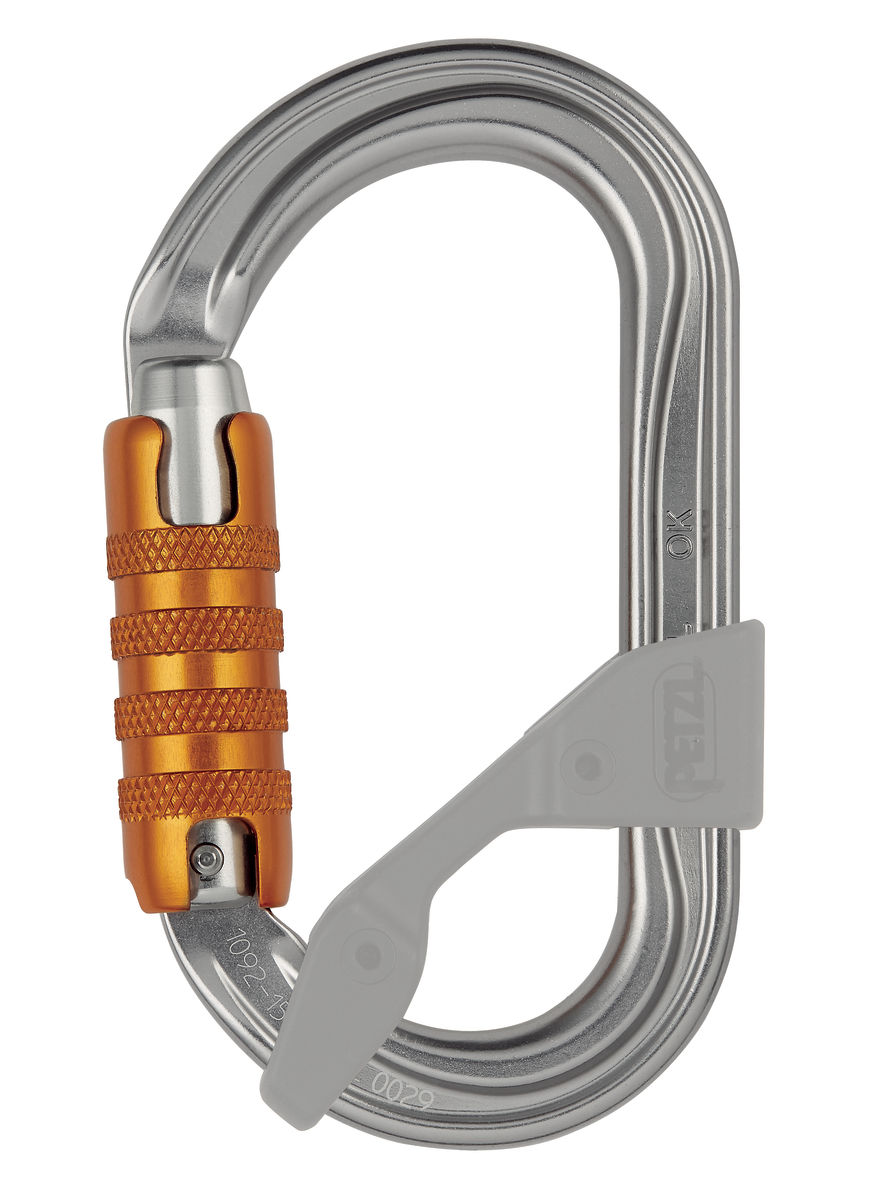

– TRIACT-LOCK: automatic locking with triple-action gate opening - May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping
Specifications
- Material(s): aluminum
References

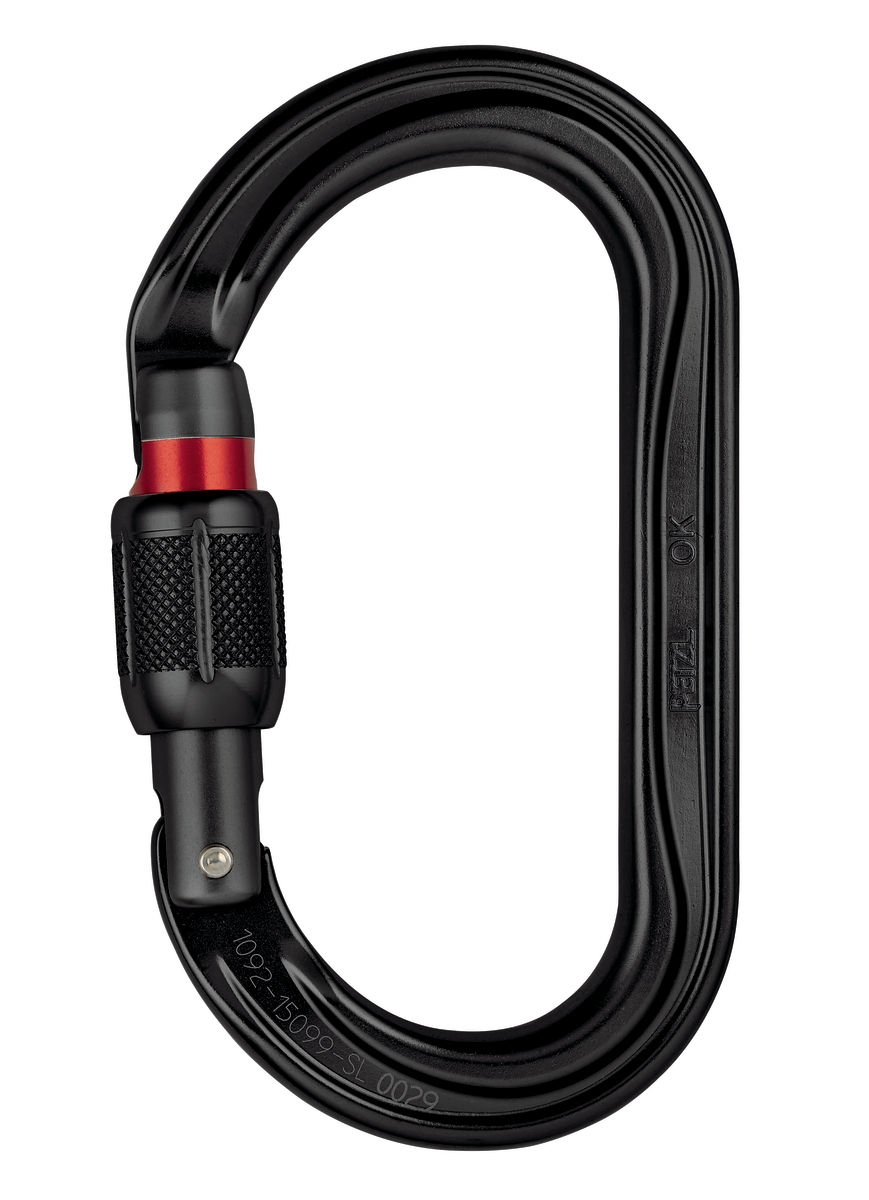

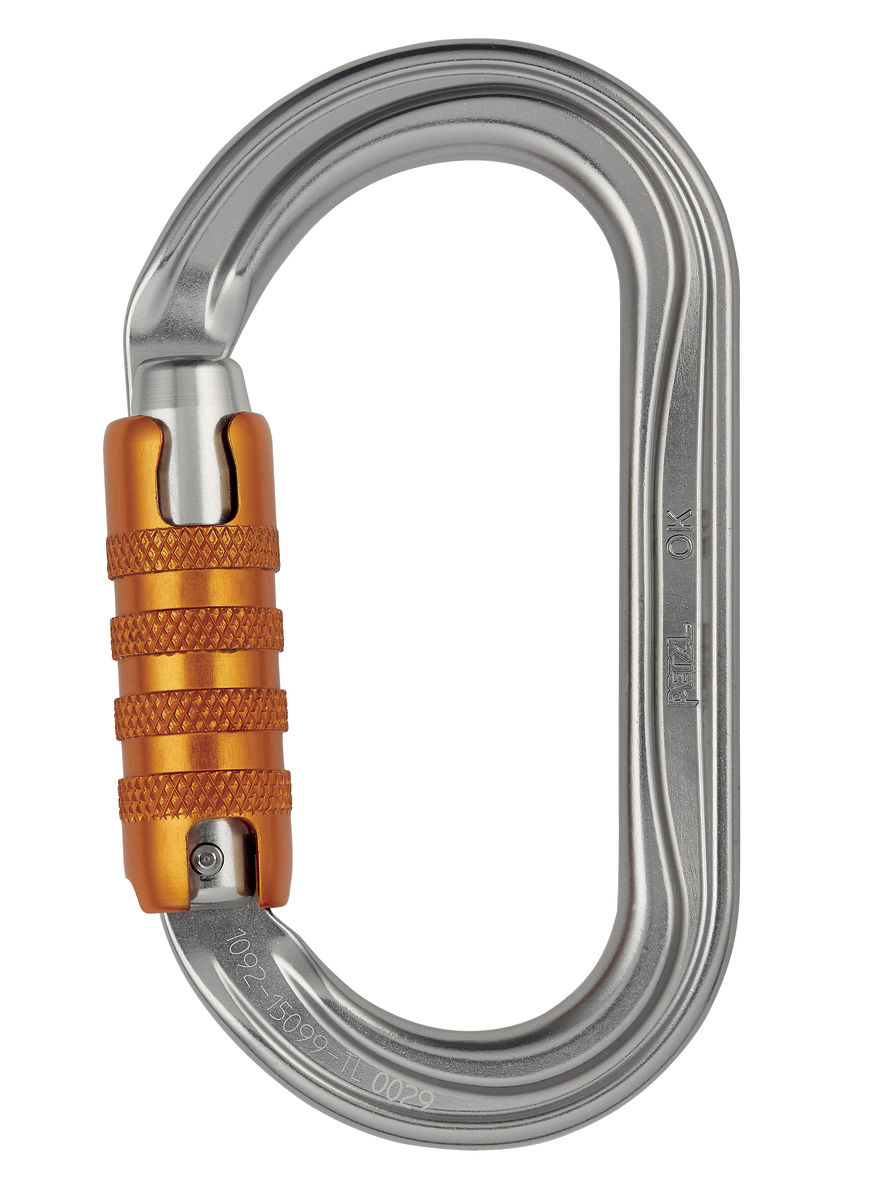

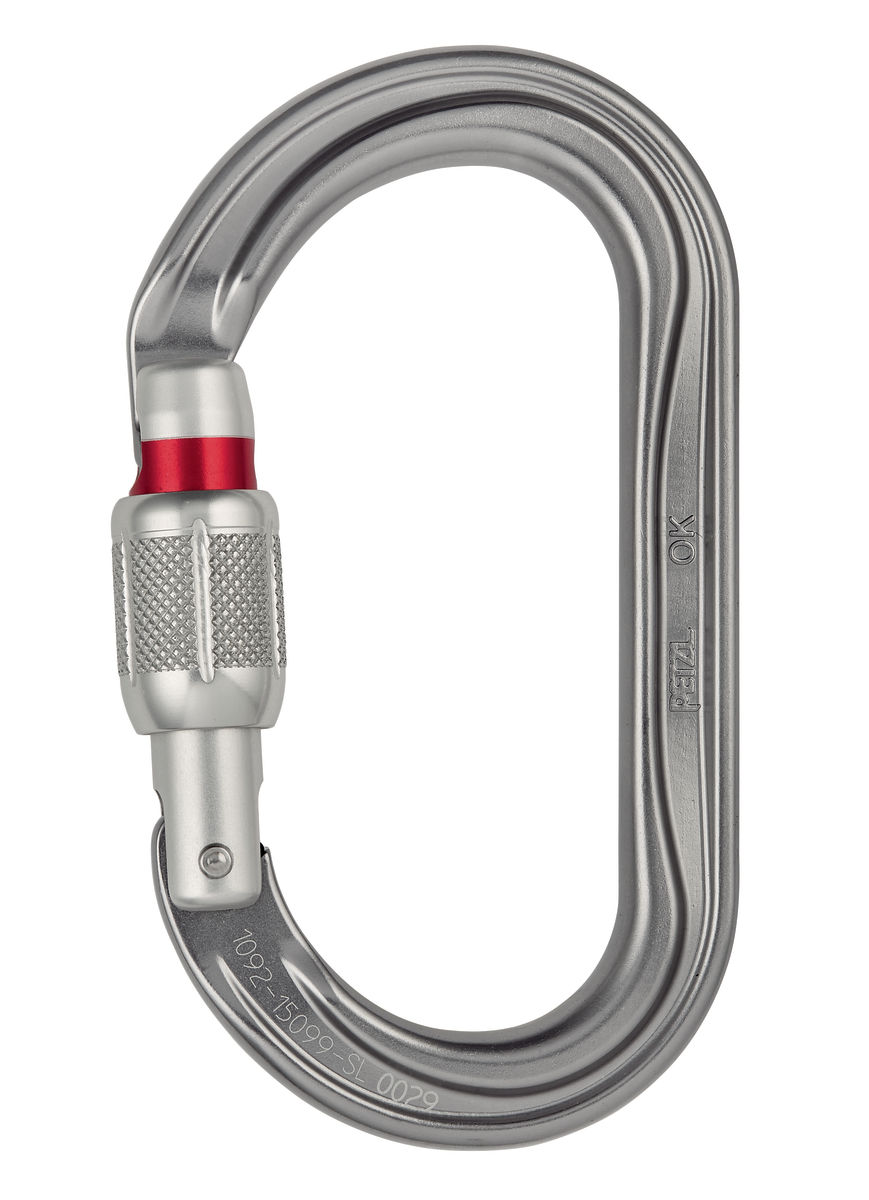

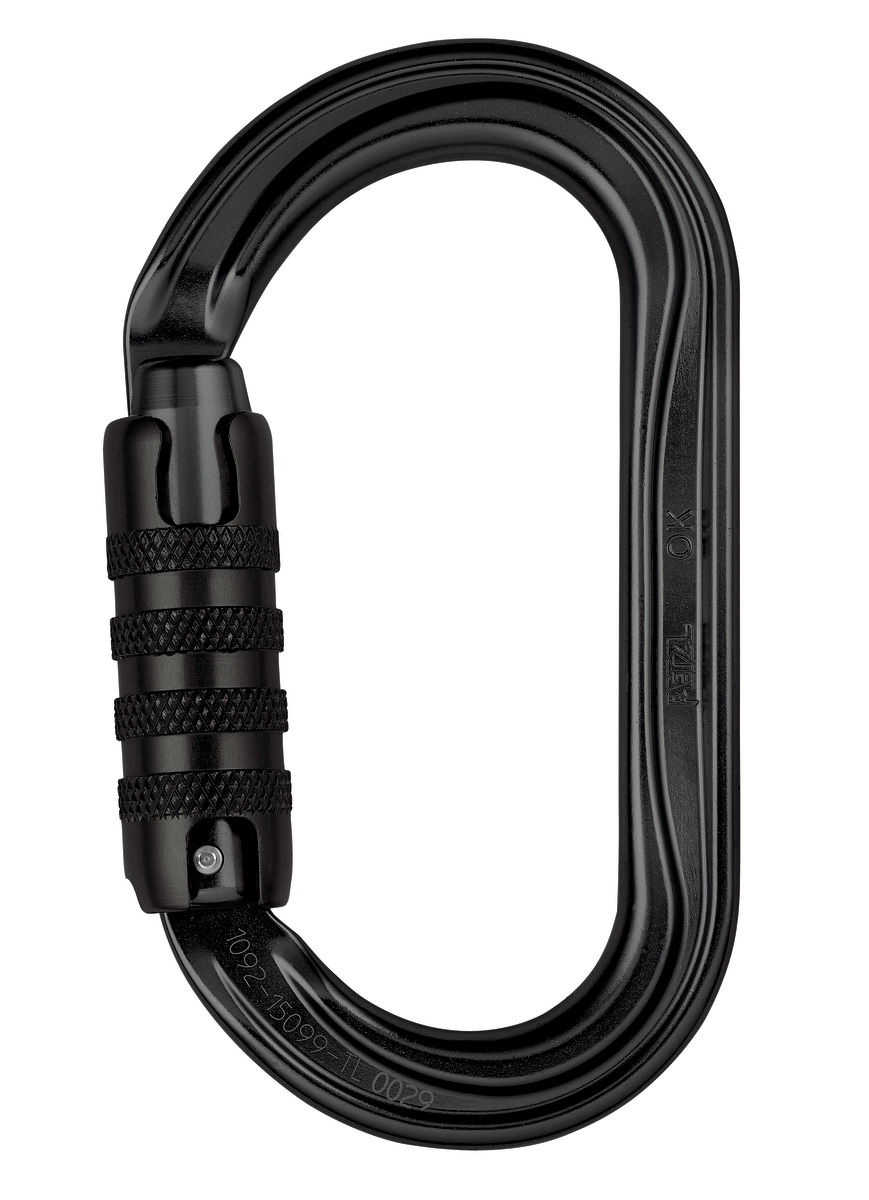

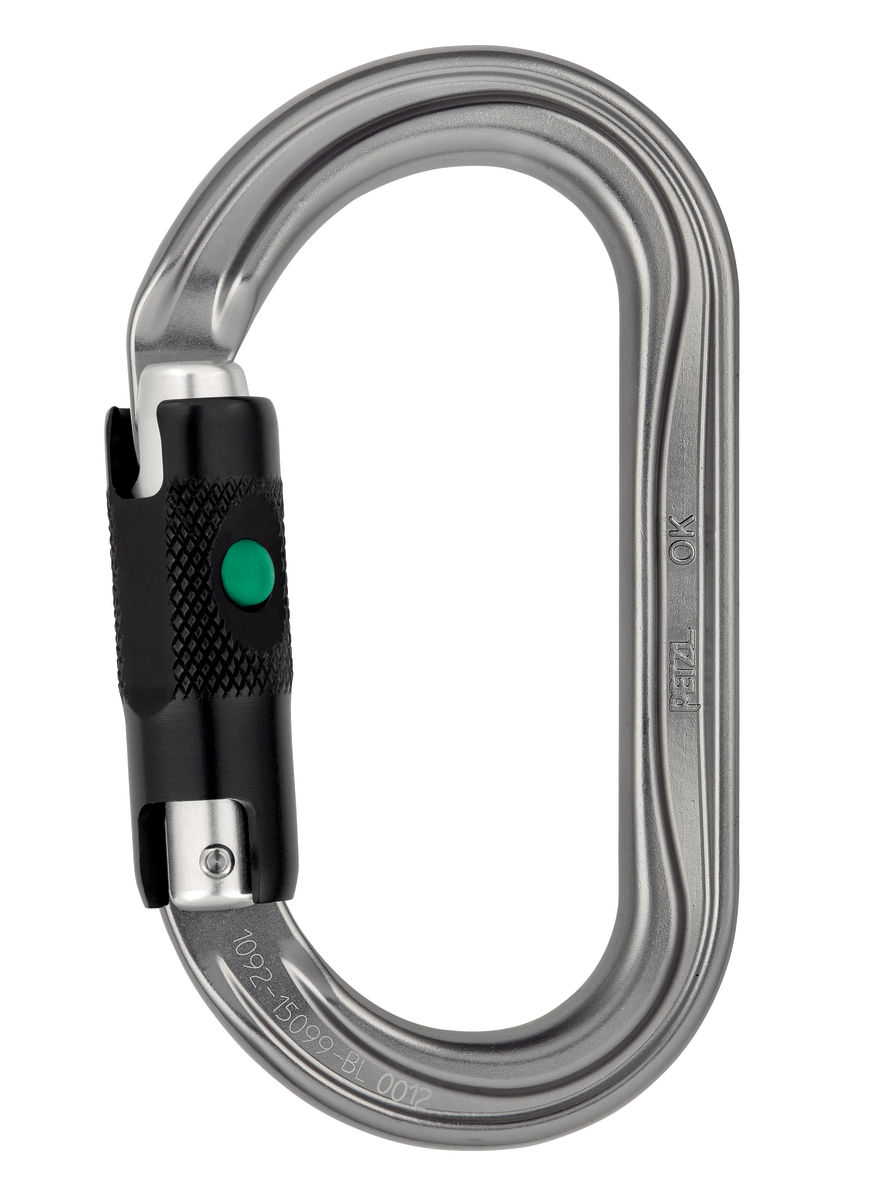

References M33A TL M33A BL M33A SL M33A TLN M33A SLN Weight 75 g 75 g 70 g 75 g 70 g Locking system TRIACT-LOCK BALL-LOCK SCREW-LOCK TRIACT-LOCK SCREW-LOCK Color(s) gray gray gray black black Major axis strength 25 kN 25 kN 25 kN 25 kN 25 kN Minor axis strength 8 kN 8 kN 8 kN 8 kN 8 kN Open gate strength 7 kN 7 kN 7 kN 7 kN 7 kN Gate opening 22 mm 23 mm 22 mm 22 mm 22 mm Guarantee 3 years 3 years 3 years 3 years 3 years Packing 1 1 1 1 1
Technical information
Technical notice
Declaration Of Conformity
PPE inspection procedure
PPE checklist
Tips for maintaining your equipment
Additional information
| Locking Mechanism | Screw Gate, Triact-Lock |
|---|---|
| Colour | Black, Silver |
