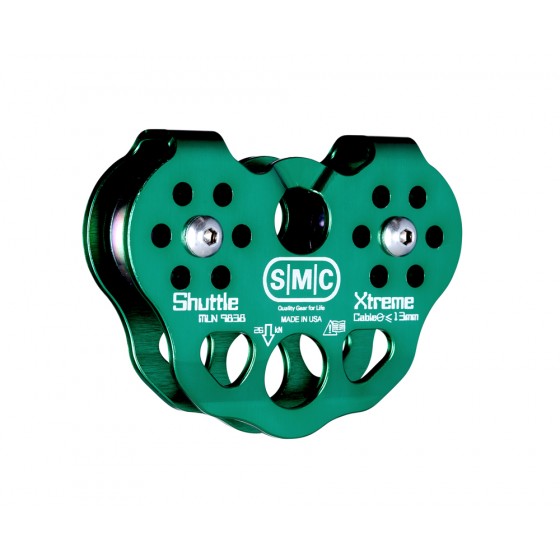

Shuttle Xtreme Tandem Cable Pulley

Designed for extreme or continuous service in permanently rigged challenge courses, commercial ziplines and eco-tourism applications.  Ideal in high-use environment where  users push their gear to the limit.

SKU: 156304 Category:
Brands:
Brands

Description

The Shuttle Cable Xtreme (156304) is considered the top dog in the SMC tandem series line.  Designed for extreme or continuous service in permanently rigged challenge courses, commercial ziplines and eco-tourism applications.  Ideal in high-use environment where  users push their gear to the limit.  Focusing on the commercial operator by giving them the ability to replace bearings and extending the overall useful life of this extraordinary pulley.  The Shuttle Xtreme is light weight, strong and reliable, along with user replaceable sealed ball bearings and long wear alloy sheaves makes this the ideal tandem pulley for the professional user.  Maximum speed rating is 20 meters per second.

Specifications:

Model #: 156304 (Green)
  Use: Rope or Cable
  Type: Tandem / Inline
  Axle:Stainless Steel
  Bearing: Stainless Steel**
  Material: AluminumFrame
  Finish: Anodized
  Dimensions: 4.25” x 3.21” x 1.07”
  Weight: 8 oz (227g)
Max. Rope: 1/2” (13mm)
Sheave: 1.37” Stainless Steel
    3 Sigma MBS: 26kN 5,845 lbf
    Made In USA
