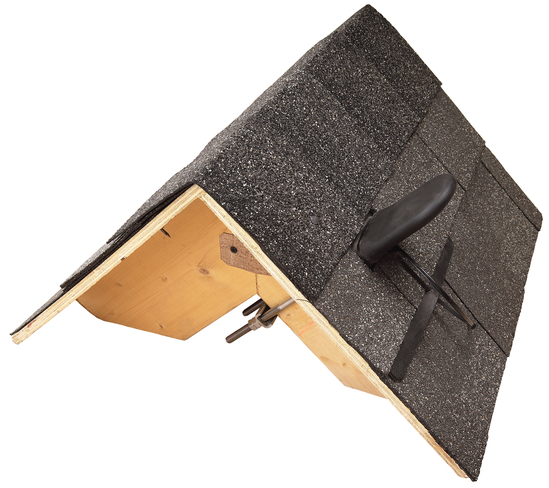

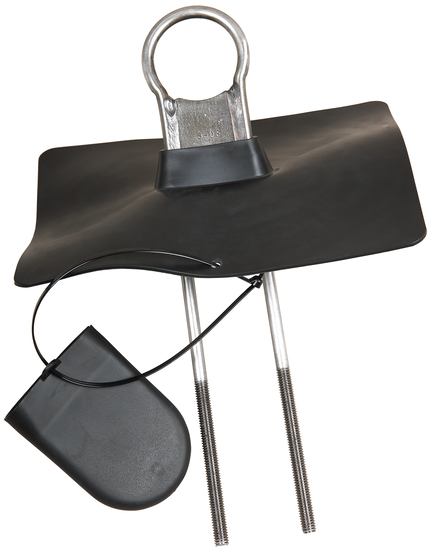

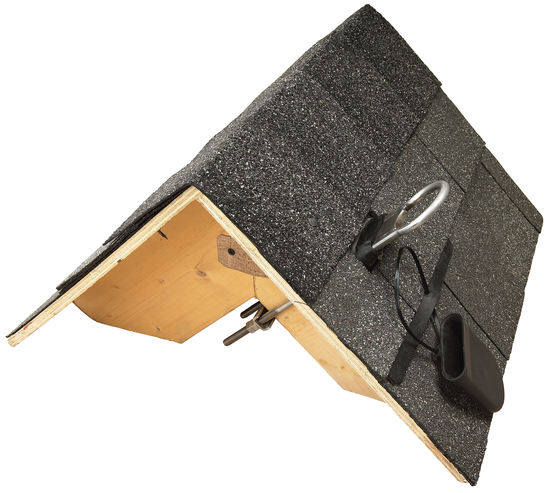

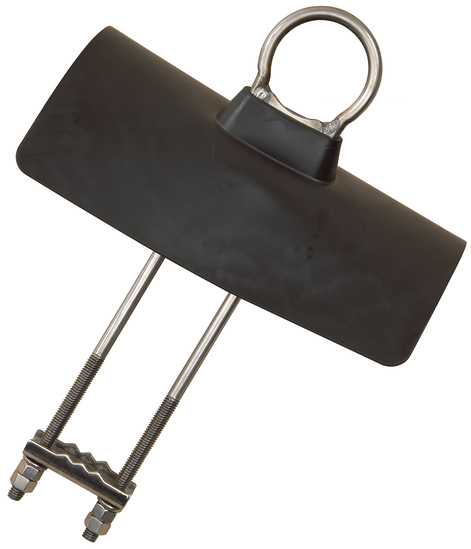

Permanent U-bolt roof anchor with integral D-ring, flashing and cap, fits up to 2×8 roof member.
Description
PRODUCT HIGHLIGHTS
-
Installs up to a 2×8 wood frame structure
-
Fast and easy bolt and clamp installation
-
Permanent installation type
-
Integral stainless steel D-ring tie-off point
-
Flashing included for complete leakage protection
-
Weather tight D-ring cap
-
Extremely corrosion resistant stainless steel construction
-
Extremely compact and lightweight design
Specifications:
| Attachment Type Info | Bolt/Clamp |
| Install Type | Permanent |
| Capacity | 310 lbs. (141 kg) |
| Brand | DBI-SALA® |
| iSafe Equipped | No |
| Label | Vinyl |
| Roof Installation | Up to 2×8 Wood |
| Model | 2103670 |
| Other Standards | OSHA 1910.66 |
| Physical Dimensions | 3.00×0.40×13.90 (in) |
| Physical Weight | 2.00 lbs (0.9kg) |
| Product Styles | Fixed |
| Product Types | Anchors for Roofs |
| Standards | Capital Safety Gen. Mfg. Req. |
