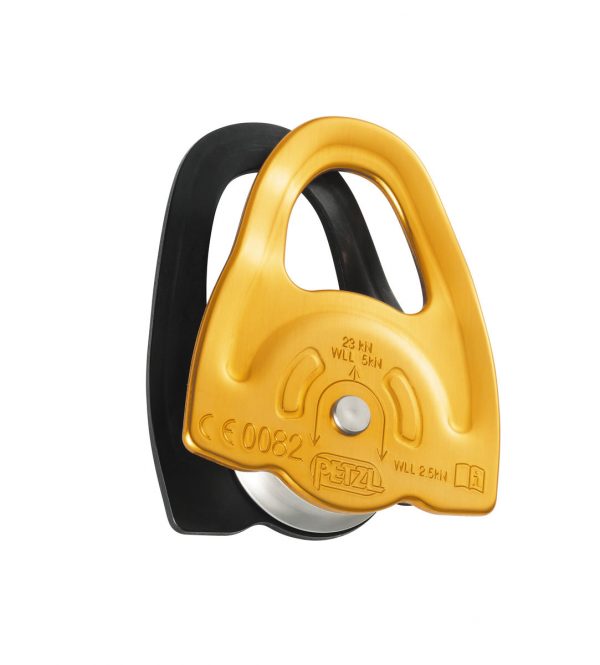

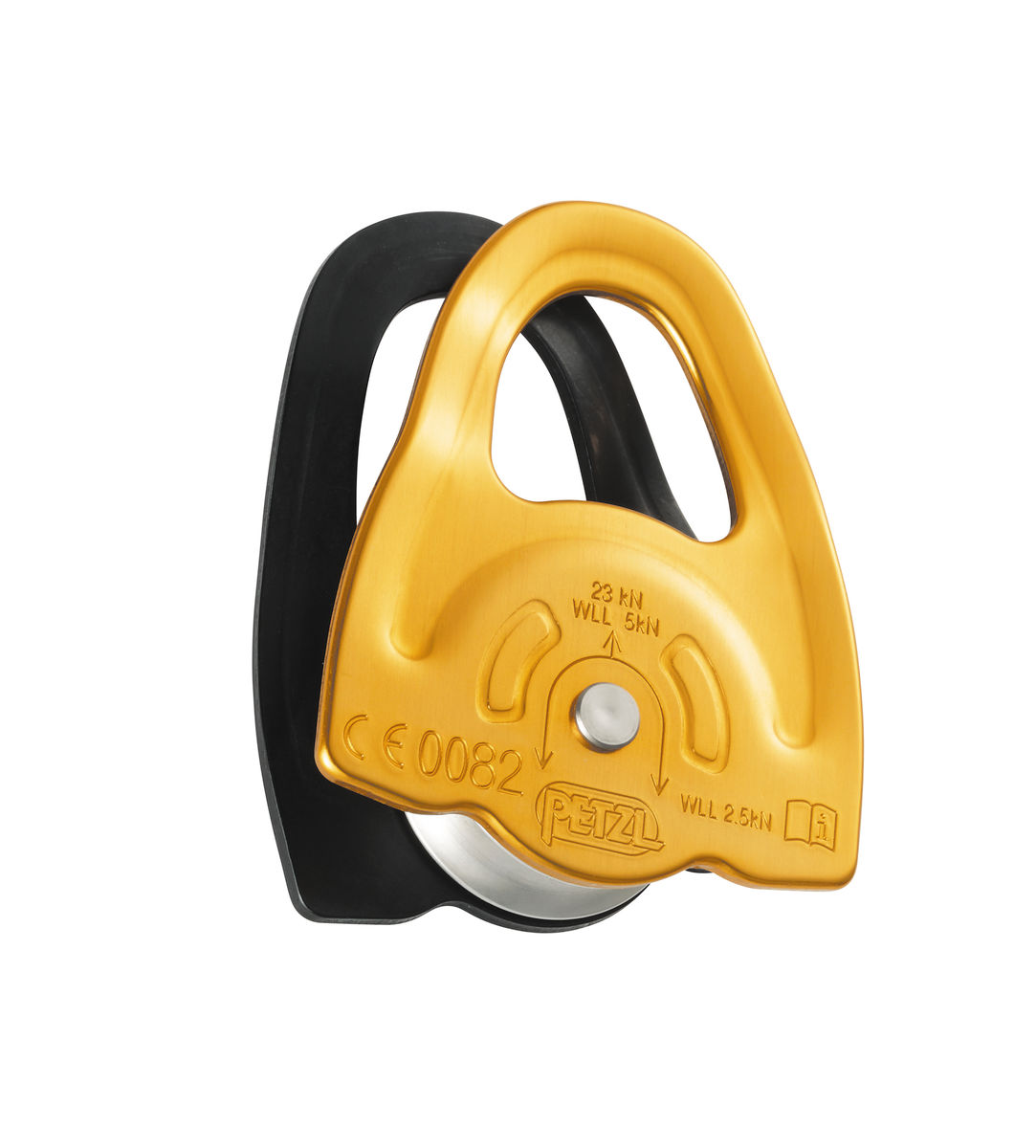

The lightweight MINI can handle big loads, but is small enough to go almost anywhere or be carried on the harness.
Description
The lightweight MINI can handle big loads, but is small enough to go almost anywhere or be carried on the harness.
Description
- Special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems
- Sheave mounted on sealed ball bearings for excellent efficiency
- Flat, compact and lightweight
Specifications
- Material(s): aluminum side plates, aluminum sheave
- Certification(s): CE EN 12278, UIAA
References
| References | P59A |
|---|---|
| Weight | 80 g |
| Min. rope diameter | 7 mm |
| Max. rope diameter | 11 mm |
| Sheave type | sealed ball bearings |
| Sheave diameter | 25 mm |
| Efficiency | 91 % |
| Working load | 5 kN |
| Working load | on one rope strand: 2.5 kN |
| Breaking strength | 23 kN |
| Guarantee | 3 years |
