Machined Rescue Pulley

Available in single and double sheave versions, in 1.1″ and 1.5″ diameters. Click here to compare all sizes.

This product is currently out of stock and unavailable.

SKU: RX-P21 Category:
Brands:
Brands

Description

Available in single and double sheave versions, in 1.1″ and 1.5″ diameters. Click here to compare all sizes.

Diameter/Desc.
                                         Weight / MBS / WLL / Max Rope / Cert

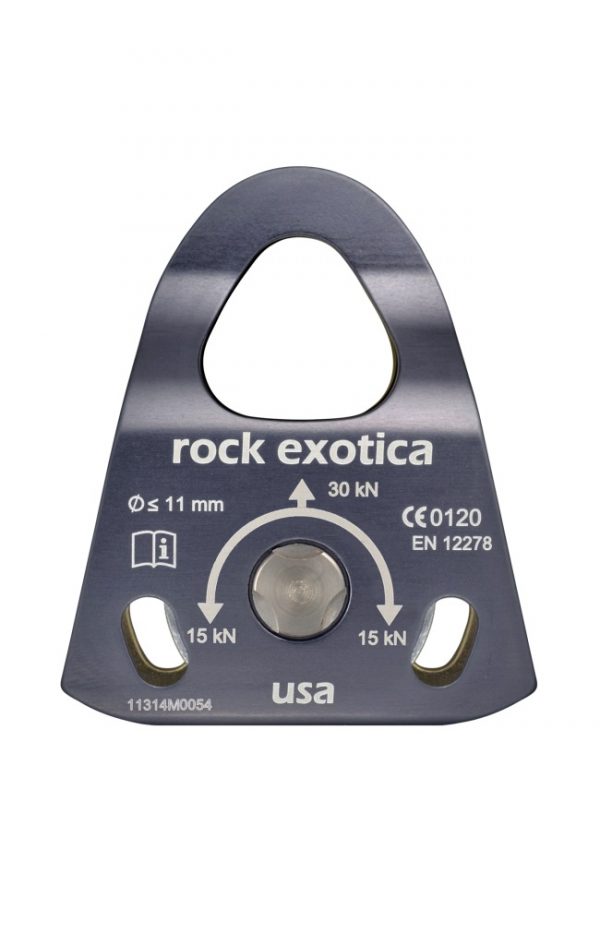

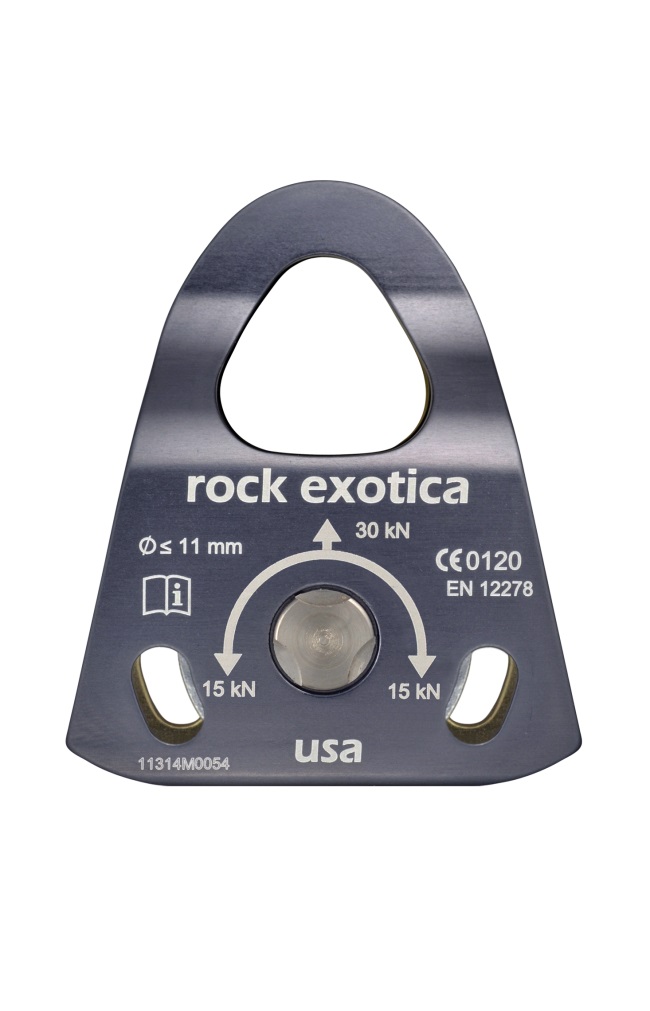

1.1″ Mini Single 2.9 oz (83 gm) | 30kN | 5kN | .43″ (11mm) | CE

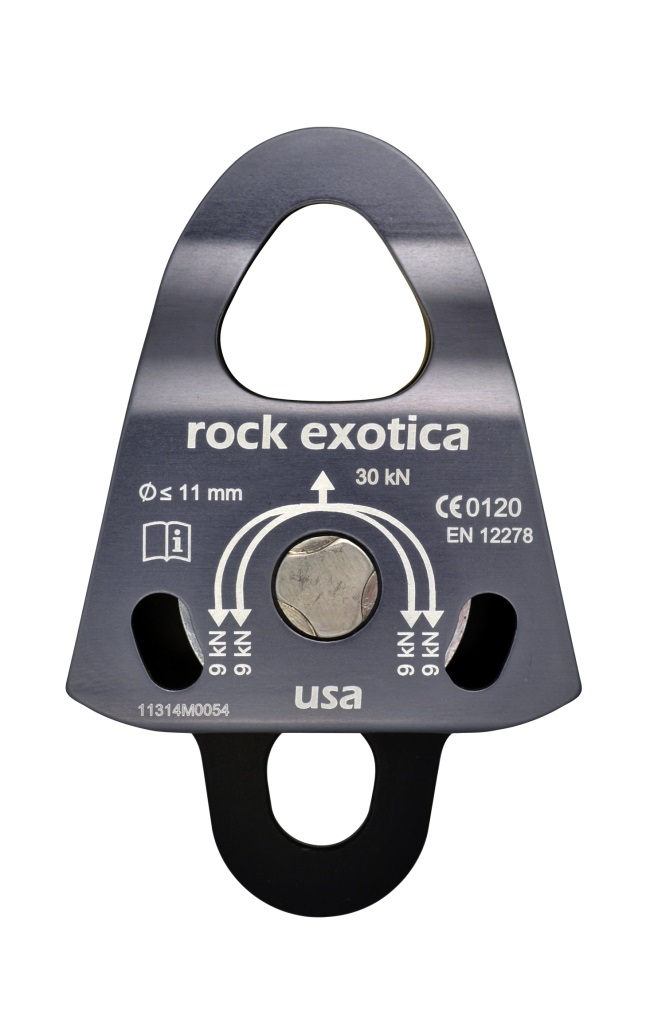

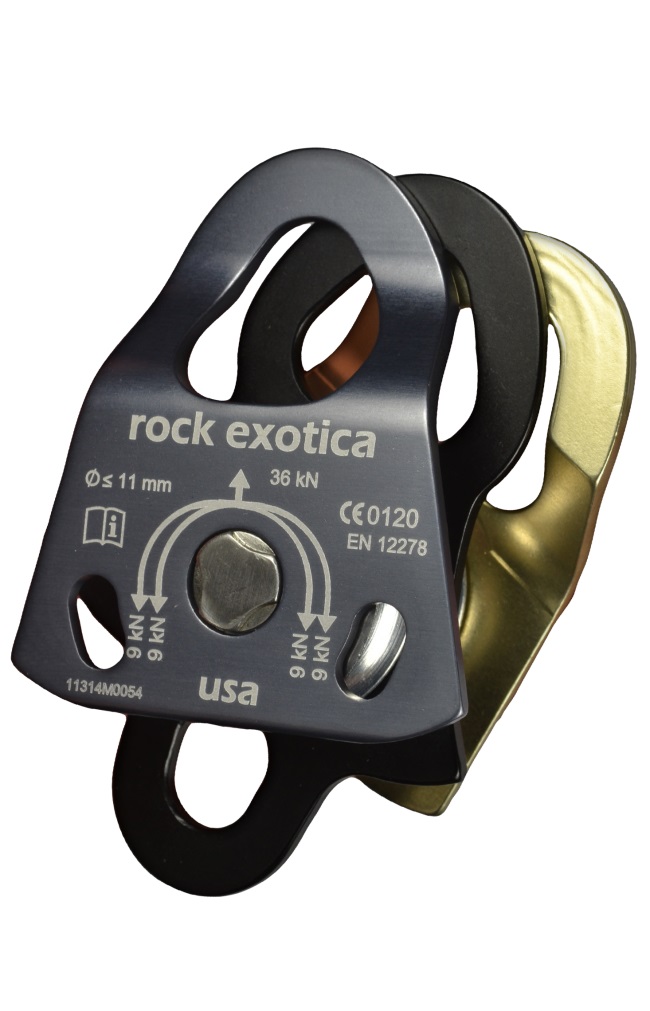

1.1″ Mini Double 5.0 oz (141gm) | 36kN | 8kN | .43″ (11mm) | CE

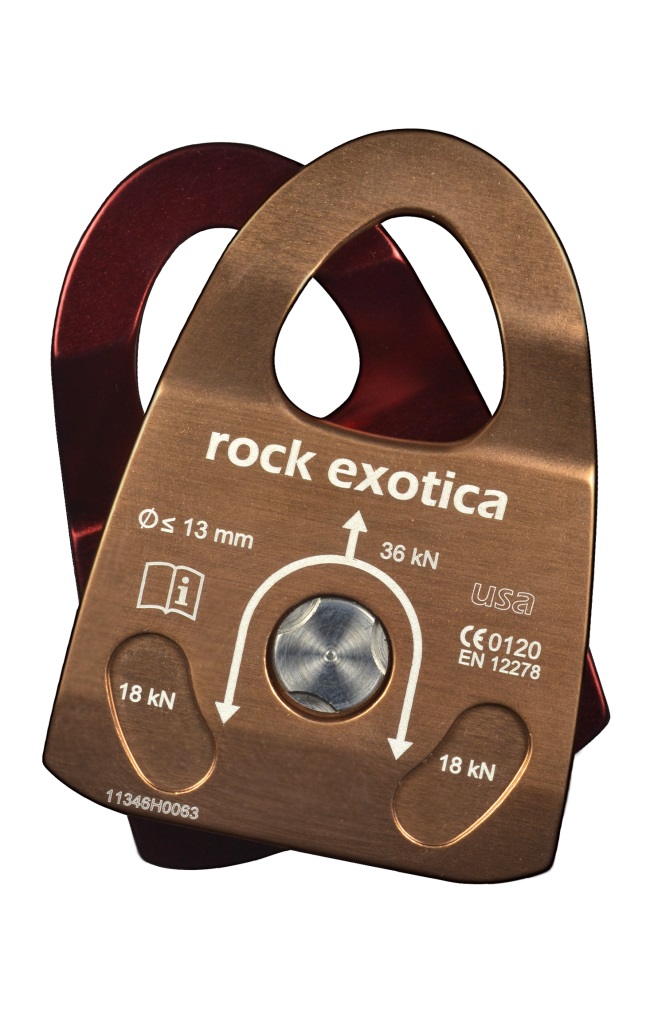

1.5″ Rescue Single 5.1 oz (144gm) | 36kN | 8kN | .5″ (13mm) | CE

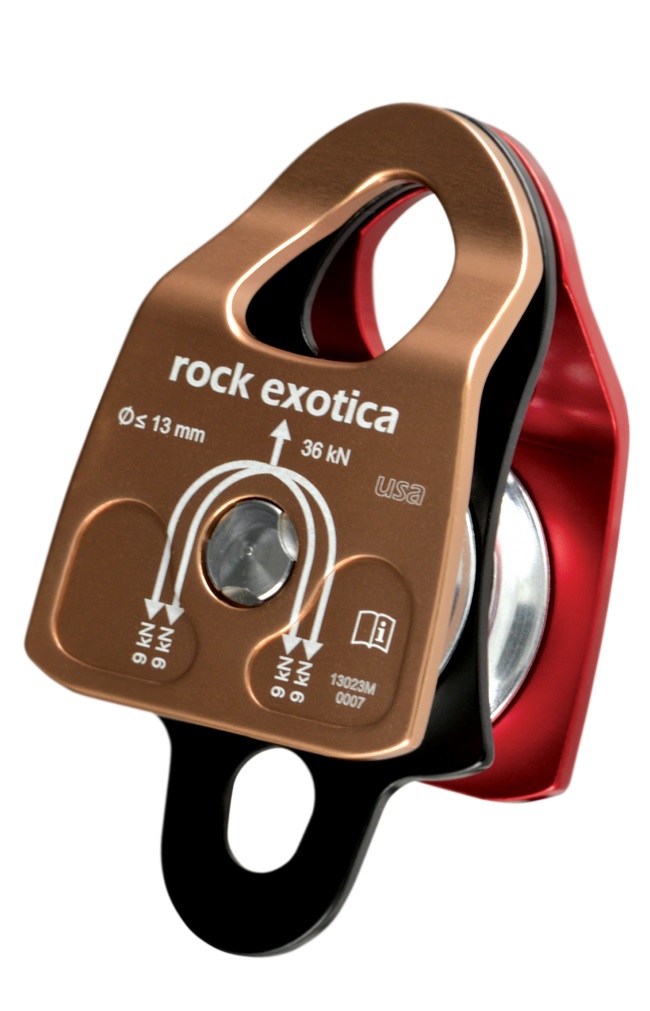

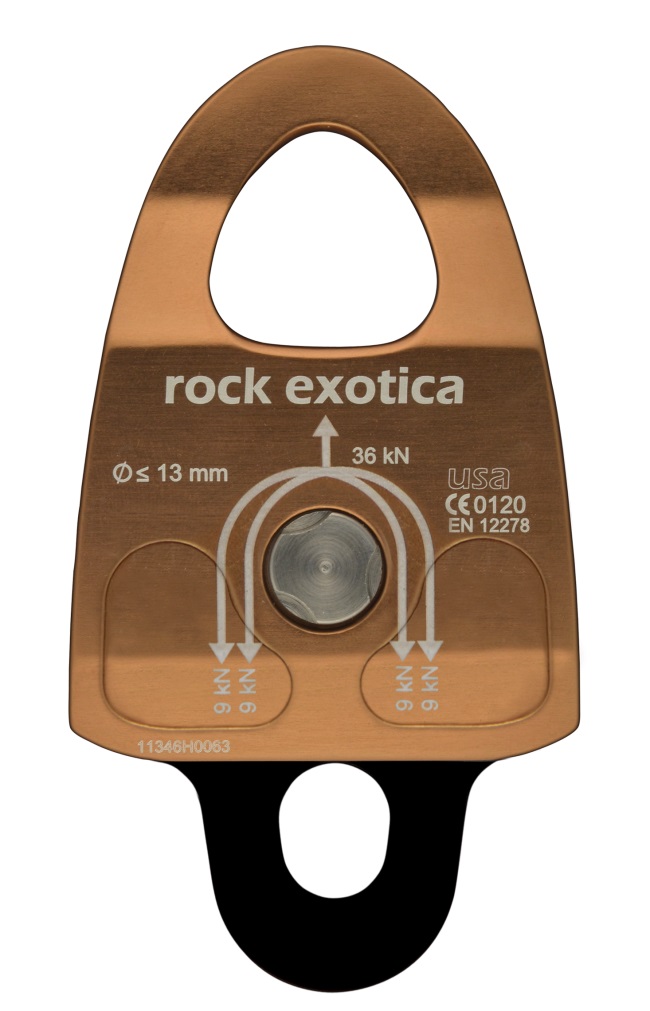

1.5″ Rescue Double 9.0 oz (254gm) | 36kN | 8kN | .5″ (13mm) | CE

Rescue Pulley Spec Sheet w/detailed product drawings (.pdf)
Machined Pulley Technical Notice (.pdf)

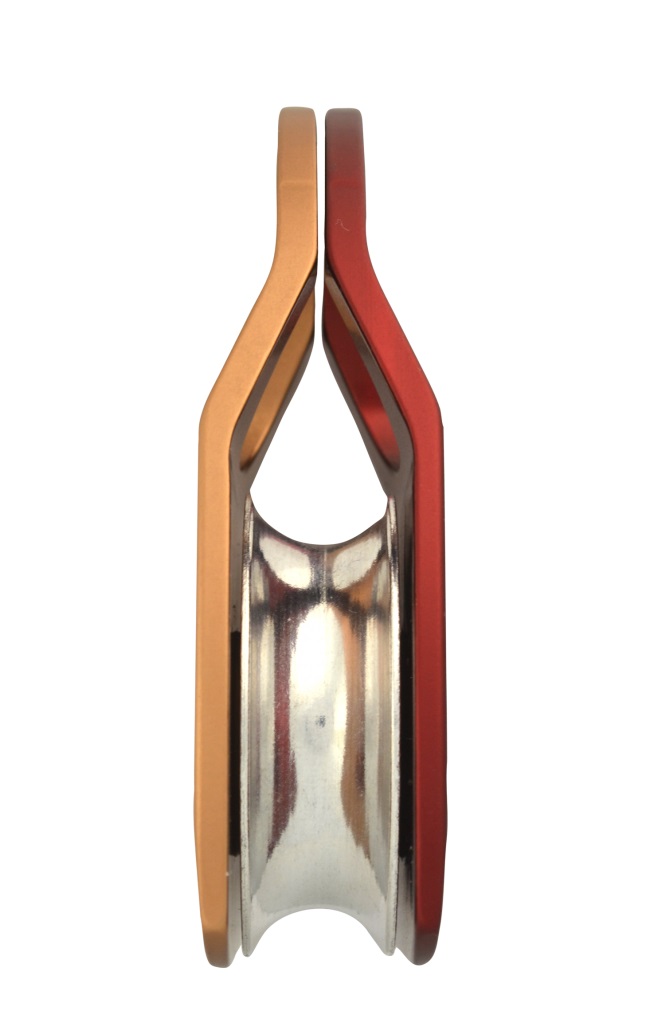

 The Machined Mini and Rescue Pulleys are designed and manufactured like no other pulley in the world. Starting as a block of solid T6 aluminum, the sideplates for the pulley are milled in such a way to leave material where it’s needed most for strength. And because the sideplate starts out of as a solid block, the axle for the pulley is left as an integrated part of the sideplate, further adding to its strength and overall rigidness.

The integrated axle also allows the pulley to use a custom manufactured threaded bolt which is countersunk into the sideplate, giving the pulley a unique snag-resistant profile. These one-of-a-kind features are the basis for the Machined Pulley’s impressive strength, slim profile and a quality of manufacture that is second to none.

  • Recessed axle screw sits flush to pulley sideplates, creating slim, snag-free profile.
  • Machined—not stamped parts, create a stronger pulley, increasing its strength-to-weight ratio.
  • Axle is integrated into sideplates, adding additional strength and rigidity to the pulley.
  • Machined sideplates allow for a more compact design while maintaining the same rope capacity of other pulleys.
  • Utilizes high-efficiency bearings

Additional information

Pulley Type

Double, Single

Diameter

1.1" Mini, 1.5" Rescue
