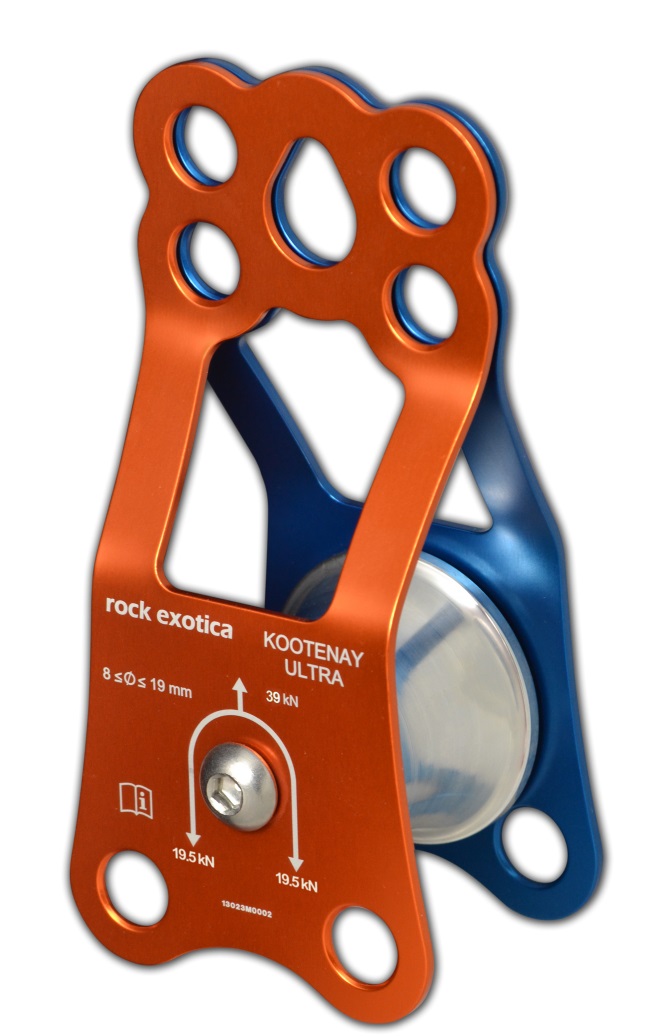

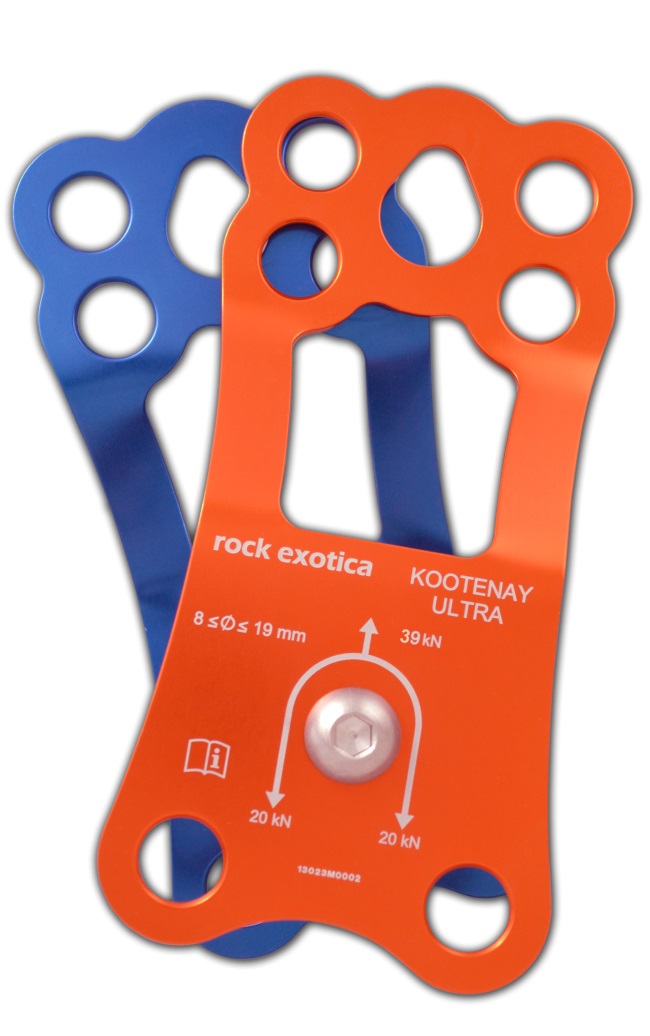

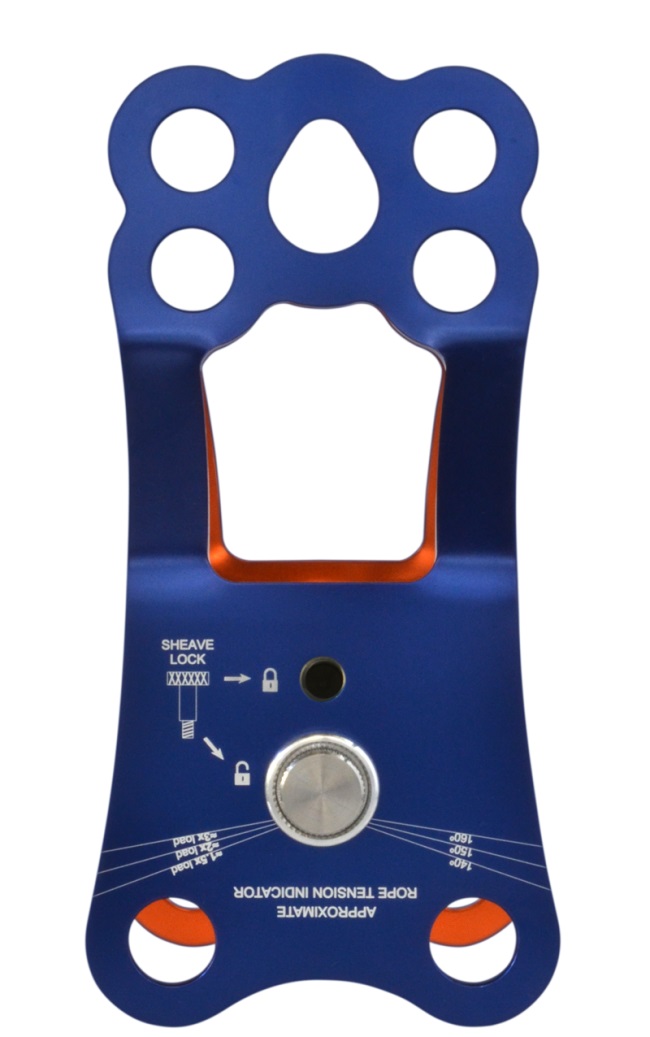

Kootenay Ultra

The original Kootenay knot passing pulley was built by Rock Exotica in the late 80’s. Since those days, many have copied the pulley and even used the original name, but none have made as many advancements in the design until now.

SKU: RX-P3 Category:
Brands:
Brands

Description

The original Kootenay knot passing pulley was built by Rock Exotica in the late 80’s. Since those days, many have copied the pulley and even used the original name, but none have made as many advancements in the design until now.

  • Extemely compact and lightweight, while maintaining same capacity of larger Kootenay-style pulleys.

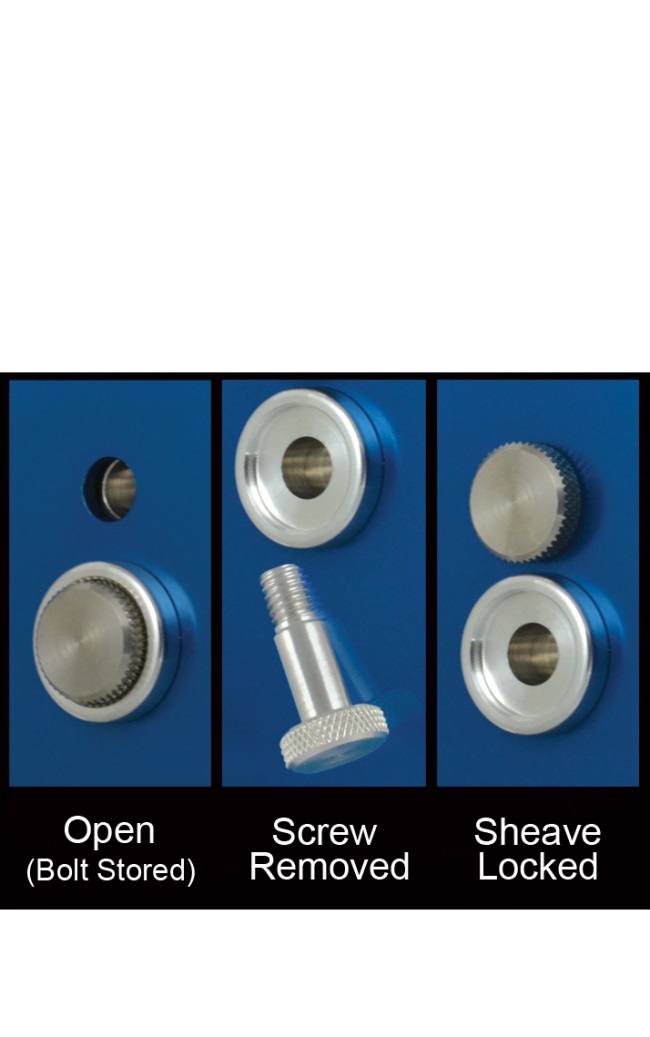

  • Simplifies high-strength tie-off with a single locking screw, stowable within the axle.
  • Uses two independent sealed ball bearings for increased durability and efficiency.
  • Two additional holes to separate tag lines and hoist lines, helping prevent spinning of the load and interference with connectors.
MBS: 39 kN
WLL: 6kN

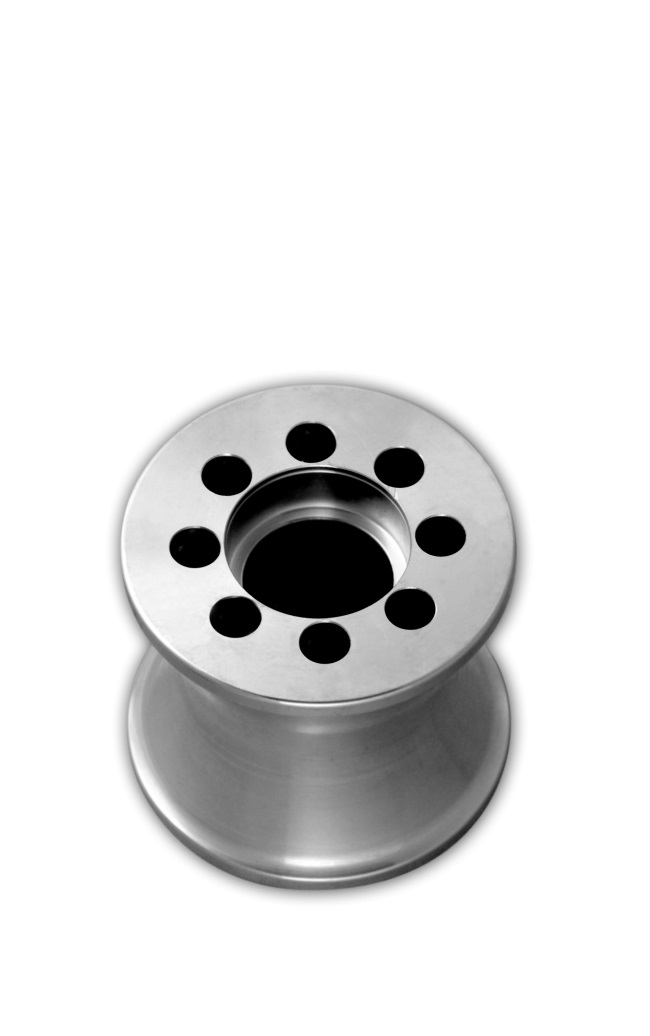

Sheave Dia: 2.2″ (56mm)
Rope Dia: 8mm – 19mm
Weight: 25 oz (711 gm)
Type: Double Bearing
Certification: CE
