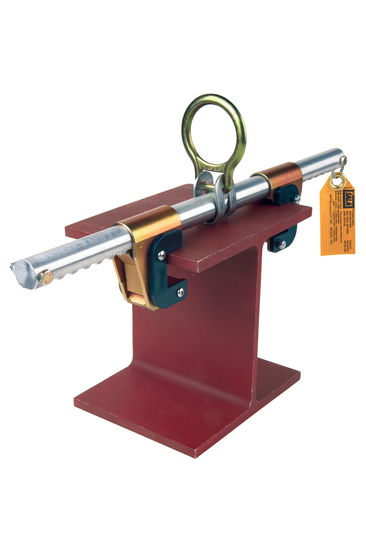

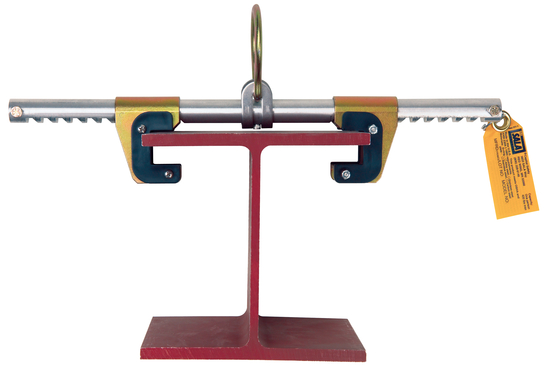

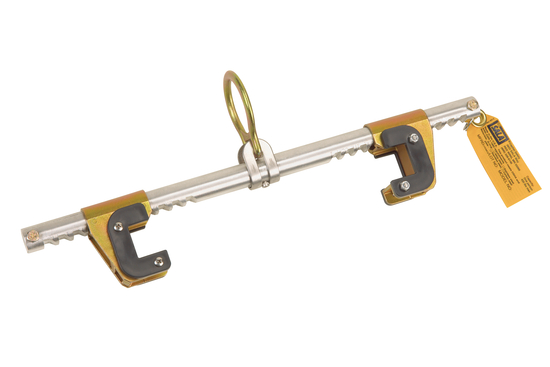

Sliding beam anchor fits 6 in. to 18 in. or 3-1/2 in. to 14 in. wide I-beams
Description
-
Installs onto 6 in. to 18 in. or 3-1/2 in. to 14 in. wide I-beams flange (9-35.5cm) up to 1-1/4″ thick (3.2cm)
-
Complete hands-free horizontal mobility
-
Compact and lightweight design
-
High strength steel and aluminum construction
-
Extremely rugged and corrosion resistant
-
Rotating D-ring tie-off point is fixed in center
-
Replaceable wear pads eliminate metal-to-metal contact
-
Integrated dual ratcheting adjustment system
-

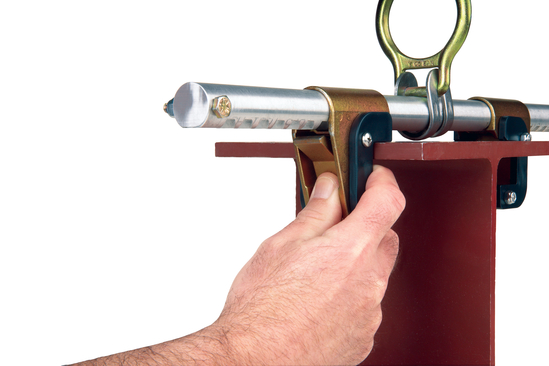

Guarded locking mechanism
-
Use Force2™ lanyard when tying off at feet
Specifications:
| Attachment Type Info | Clamp |
| Fits I-Beam Flange Width | 3-1/2 to 14 in. (9-35.5cm) or 6 to 18 in. (15.3-45.7cm) |
| Install Type | Reusable |
| Capacity | 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA |
| Brand | DBI-SALA® |
| Sub Brand | Glyder™ |
| Size | 3-1/2 in. to 14 in. wide I-beams (9-35.5cm) up to 1-1/4″ thick (3.2cm) |
| Velocity Ship | Yes |
| iSafe Equipped | Yes |
| Length | 3-1/2 in. to 14 in. wide I-beams (9-35.5cm) up to 1-1/4″ thick (3.2cm) |
| Label | Vinyl |
| Model | 2104701 |
| Other Standards | OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI A10.32, ANSI Z359.1 |
| Physical Dimensions | 19.30×3.00×4.30 (in) |
| Physical Weight | 3.90 lbs (1.8kg) |
| Product Styles | Mobile |
| Product Types | Anchors for Steel |
| Standards | Capital Safety Gen. Mfg. Req. |
Additional information
| Width | 3-1/2 to 14 in. (9-35.5cm), 6 to 18 in. (15.3-45.7cm) |
|---|
