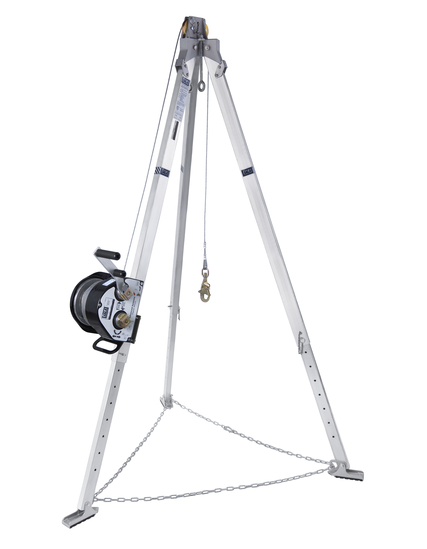

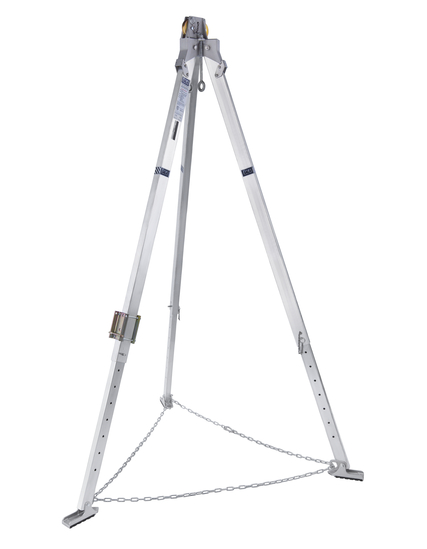

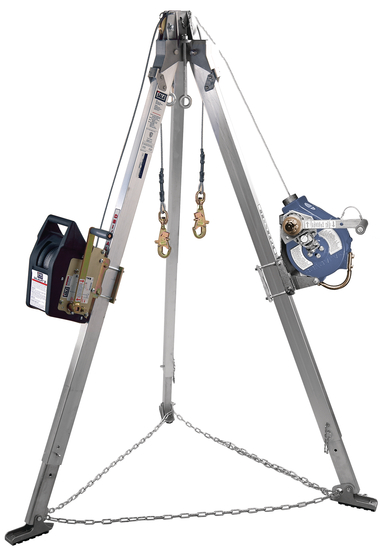

Advanced™ Aluminum Tripod

7 ft. (2.1 m) or 9 ft. (2.7 m) aluminum tripod with adjustable locking legs, safety chain, safety shoes, top pulley and quick-mount bracket.

  • 7 ft. (2.1 m) or 9 ft. (2.7 m) aluminum tripod
  • Telescoping adjustable locking legs
  • Built-in pulley system
  • Rubber safety shoes with spiked edges
  • Safety leg support chain
  • Integrated 5,000 lb. (22 kN) eyebolt anchor points
  • Quick connect winch/SRL mount bracket
  • Equipped with i-Safe™
  • Order mechanical winch/SRL device(s) separately

This product is currently out of stock and unavailable.

SKU: N/A Category:
Brands:
Brands

Description

  • 7 ft or 9 ft aluminum tripod lightweight and durable aluminum construction is easy to transport, set-up and use and will stand up to the elements for extended longevity.
  • Telescoping adjustable locking legs simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space.
  • Built-in pulley system provides an easy way to rout your mechanical devices lifeline into the confined space, and keeps it centered.
  • Rubber safety shoes with spiked edges offers a non-slipping design for both flat surfaces and uneven terrains for complete safety.
  • Safety leg support chain prevents movement of the legs when the system is under load providing added support, strength and safety.
  • Integrated 5,000 lb. (22 kN) eyebolt anchor points two eyebolts designed to hand plumb regardless of surface are ideal for attachment of secondary or back-up systems.
  • Quick connect winch/SRL mount bracket easily attach a mechanical device such as winch or 3-way self retracting lifeline directly to the tripod leg.
  • Equipped with i-Safe™ integrated RFID identification tag for recording and storing information on inspections and tracking safety equipment.
  • Order mechanical winch/SRL device(s) separately various winch and 3-way self retracting lifeline configurations and options are available to suit most site requirements for added peace of mind.

    Specifications:

Capacity 350 lbs. (159 kg)
Brand DBI-SALA®
Sub Brand Advanced™
Size 7 ft. or 9 ft
Install Type Portable
Velocity Ship Yes
iSafe Equipped Yes
Length 7 ft. or 9 ft
Label Mylar with Laminate
Model 8000014
Other Standards ANSI Z117.1-1995, OSHA 1910.66, OSHA 1910.146, OSHA 1926.502, U.L. Classified 41Y7, Capital Safety Gen. Mfg. Req.
Physical Weight 43.00 lbs (19.5kg)
Product Styles Tripod
Product Types Tripod System
Standards Capital Safety Gen. Mfg. Req.

Additional information

Height

7 Foot, 9 Foot
