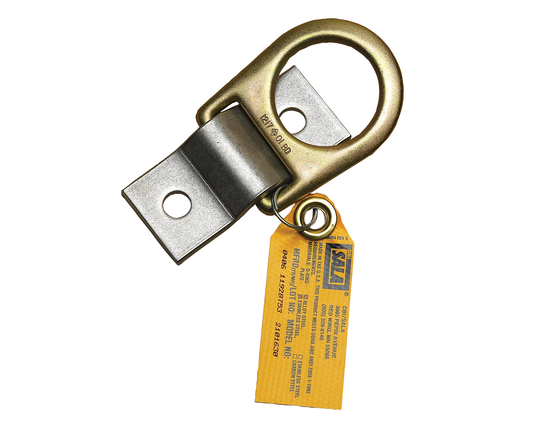

D-ring Anchorage Plate

D-ring anchorage plate with zinc plated steel D-ring and 304 stainless steel plate.

SKU: L1630 Category:


  • Bolt or weld to structure for fall arrest anchor point
  • Compact 1/4″ x 2″ x 4-1/2″ (6 x 51 x 114 mm) 304 stainless steel plate
  • Pre-drilled 1/2″ (12.7mm) holes
  • Zinc plated steel D-ring for compatible tie-off point
  • High strength steel construction
  • Extremely rugged and corrosion resistant


Attachment Type Info Bolt/Weld
Install Type Permanent
Capacity 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Velocity Ship Yes
iSafe Equipped No
Label Vinyl
Model 2101639
Other Standards OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI A10.32, ANSI Z359.1
Physical Dimensions 0.25×2.00×4.50 (in)
Physical Weight 1.20 lbs (0.5kg)
Product Styles Fixed
Product Types Anchors for Steel
Standards Capital Safety Gen. Mfg. Req.
