RockD Carabiner

The rockD is the carabiner of choice when seeking the highest strength in a standard-sized aluminum frame. Available in the ORCA, Auto-lock, Screw-lock and other gate options, the rockD carabiner serves the broadest range of specialized uses

This product is currently out of stock and unavailable.

SKU: RX-C2 Category:
Brands:
Brands

Description

The rockD is the carabiner of choice when seeking the highest strength in a standard-sized aluminum frame. Available in the ORCA, Auto-lock, Screw-lock and other gate options, the rockD carabiner serves the broadest range of specialized uses. The rockD in non-lanyard versions, features a flattened profile with an i-beam profile at the bottom and top bends, giving the carabiner a sleek profile, while providing low weight and high strength characteristics.

  • Narrow asymmetric “D” shape optimizes MBS
  • High strength-to-weight ratio in standard size carabiner
  • Snag-resistant keylock nose design
  • Large and ergonomic angled gate opening
  • Machined frame ensures tight tolerances and smooth operation

View Specs for All Aluminum Carabiners
Carabiner Tech Notice (.pdf)



AVAILABLE ON THE ROCK D

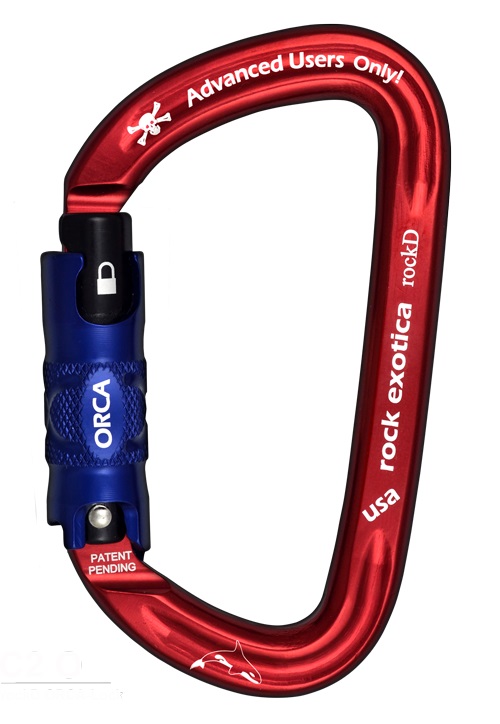

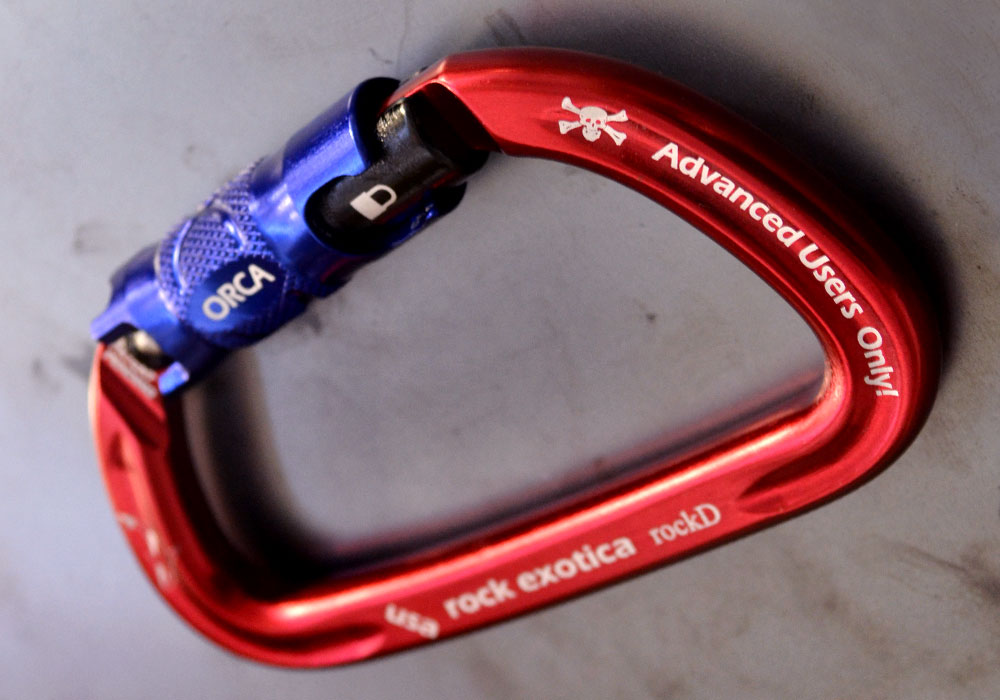

ORCA-LOCK
Lift up, twist and open like a 3-stage gate. Can be set to remain in the unlocked position.

AUTO-LOCK
Pull down toward palm, twist and open. 3-stage mechanism.

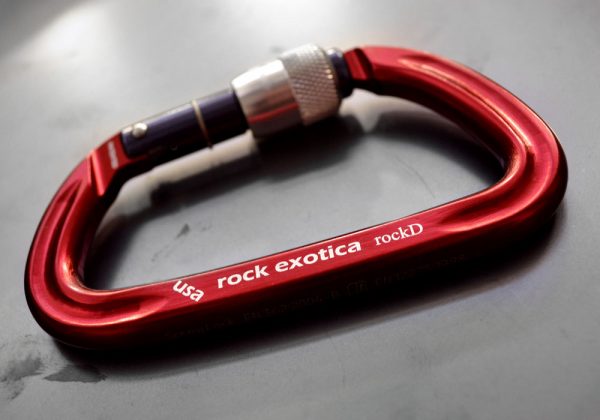

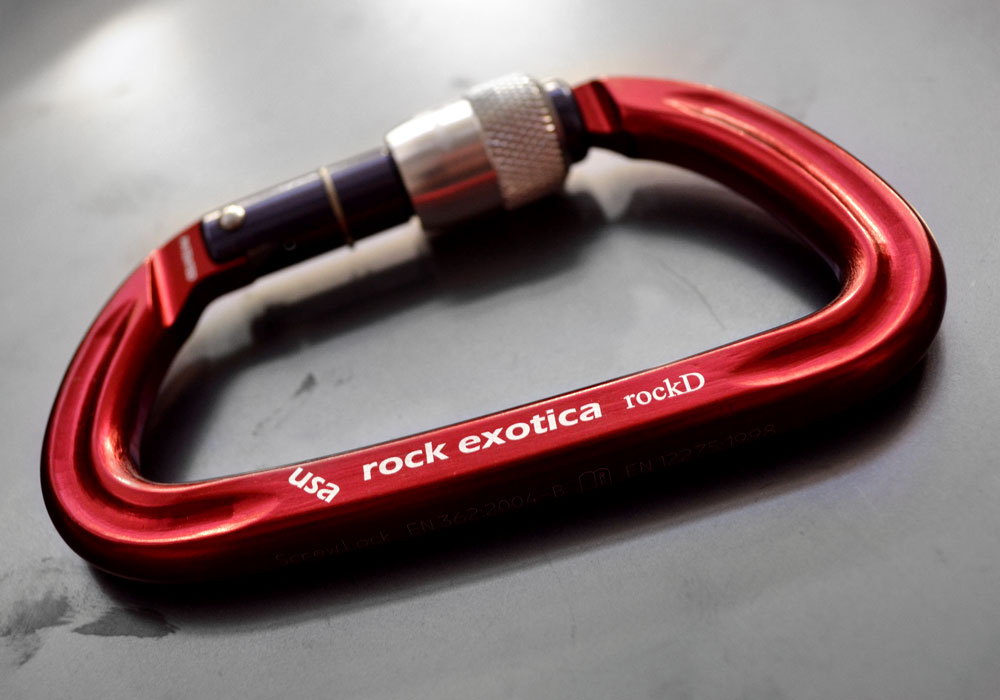

SCREW-LOCK
Spin gate downward and open.
2-stage mechanism.

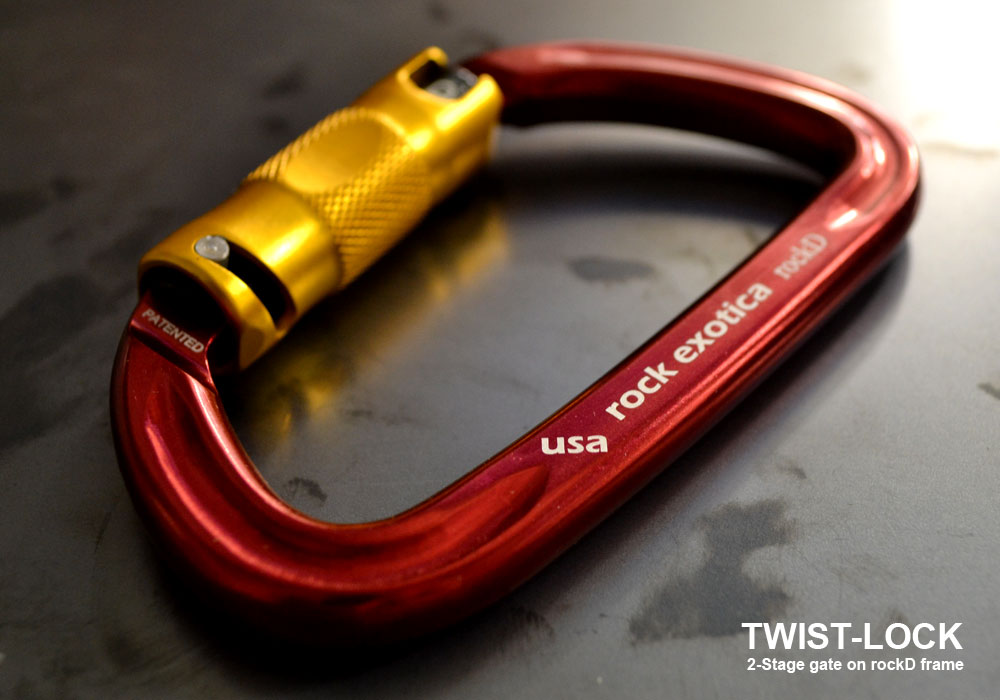

TWIST-LOCK
Lift up, twist and open like a 3-stage. Can be set to remain in the unlocked position.

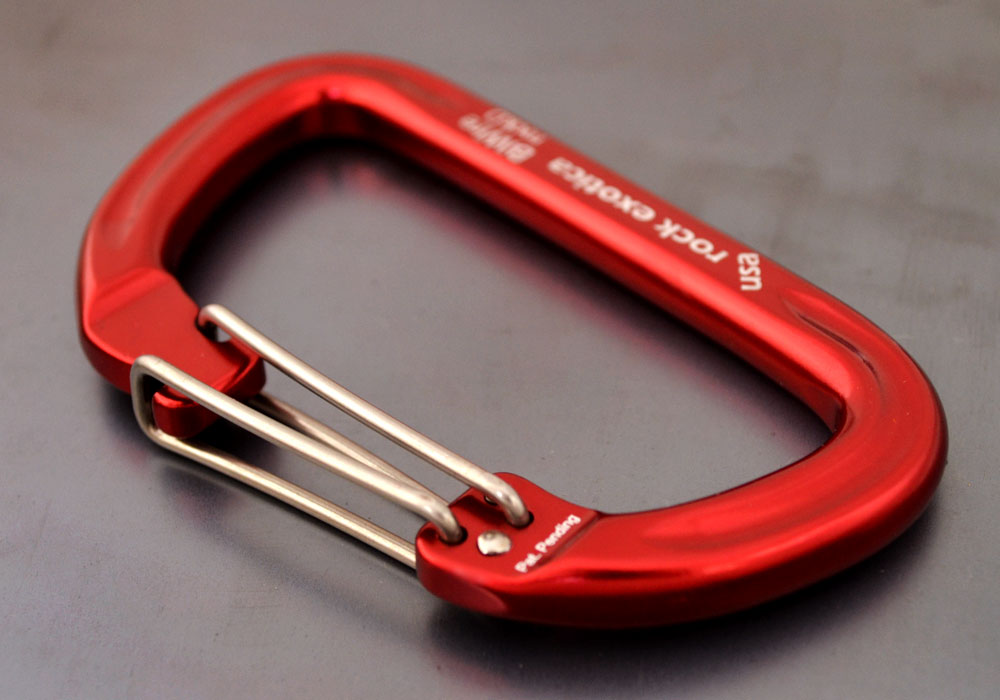

Bi-Wire
Spread the wire gates open with your index finger and thumb.

ROCK D SPECS BY MODEL

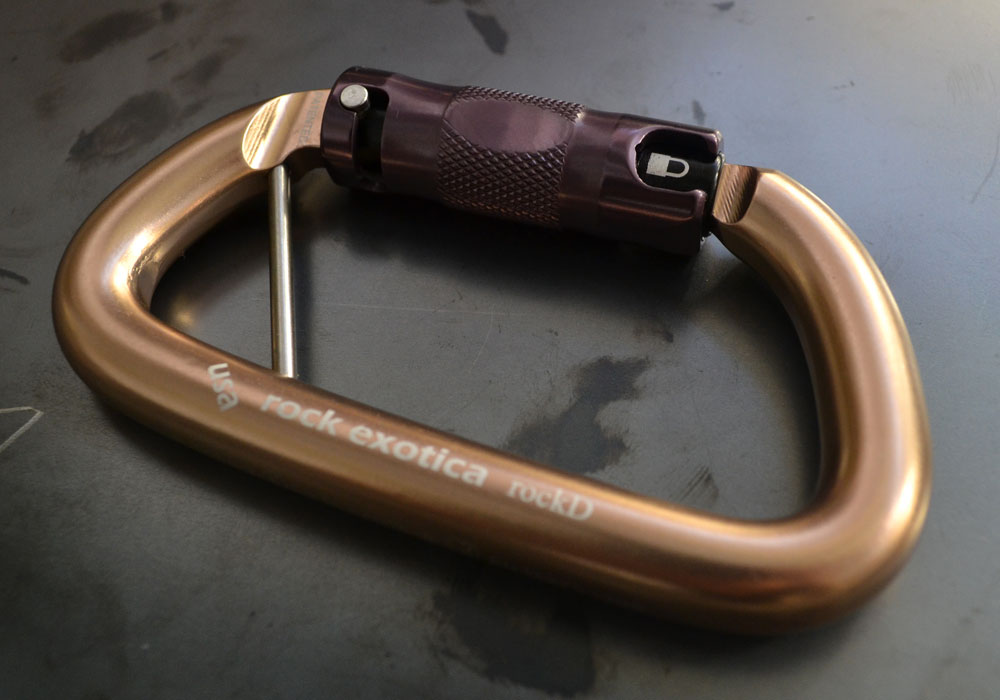

Gate rockD ORCA rockD Auto rockD Screw rockD Twist Lanyard Pin BiWire
Ref # C2 O C2 A C2 S C2 T C2 LPA C2 BW
MBS-Major 29kN 29kN 29kN 29kN 30kN 30kN
MBS-Minor 11kN 11kN 9kN 11kN 11kN 11kN
MBS-Open 9kN 9kN 9kN 9kN 10kN 9kN
Gate Opening .95″ (24 mm) .95″ (24 mm) .95″ (24 mm) .95″ (24 mm) .95″ (24 mm) 1.1″ (28 mm)
Weight 2.85 oz (80 gm) 2.85 oz (80 gm) 2.61 oz (73 gm) 2.85 oz (80 gm) 3.52 oz (99 gm) 2.40 oz (68 gm)
Height 4.5″ (114 mm) 4.5″ (114 mm) 4.5″ (114 mm) 4.5″ (114 mm) 4.5″ (114 mm) 4.5″ (114 mm)
Width 2.8″ (71 mm) 2.8″ (71 mm) 2.8″ (71 mm) 2.8″ (71 mm) 2.8″ (71 mm) 2.8″ (71 mm)
Color Red/Black Red/Black Red/Black Red Gold Red
Certification CE/UIAA CE/UIAA CE/UIAA CE/UIAA CE/UIAA

Additional information

Locking Mechanism

Auto Lock, ORCA Lock, Screw Gate, Twist Lock (2 stage)

Colour

Black, Red
